Cut-Buffing Wheel | Sisal-Cotton SB-VR | Configurable

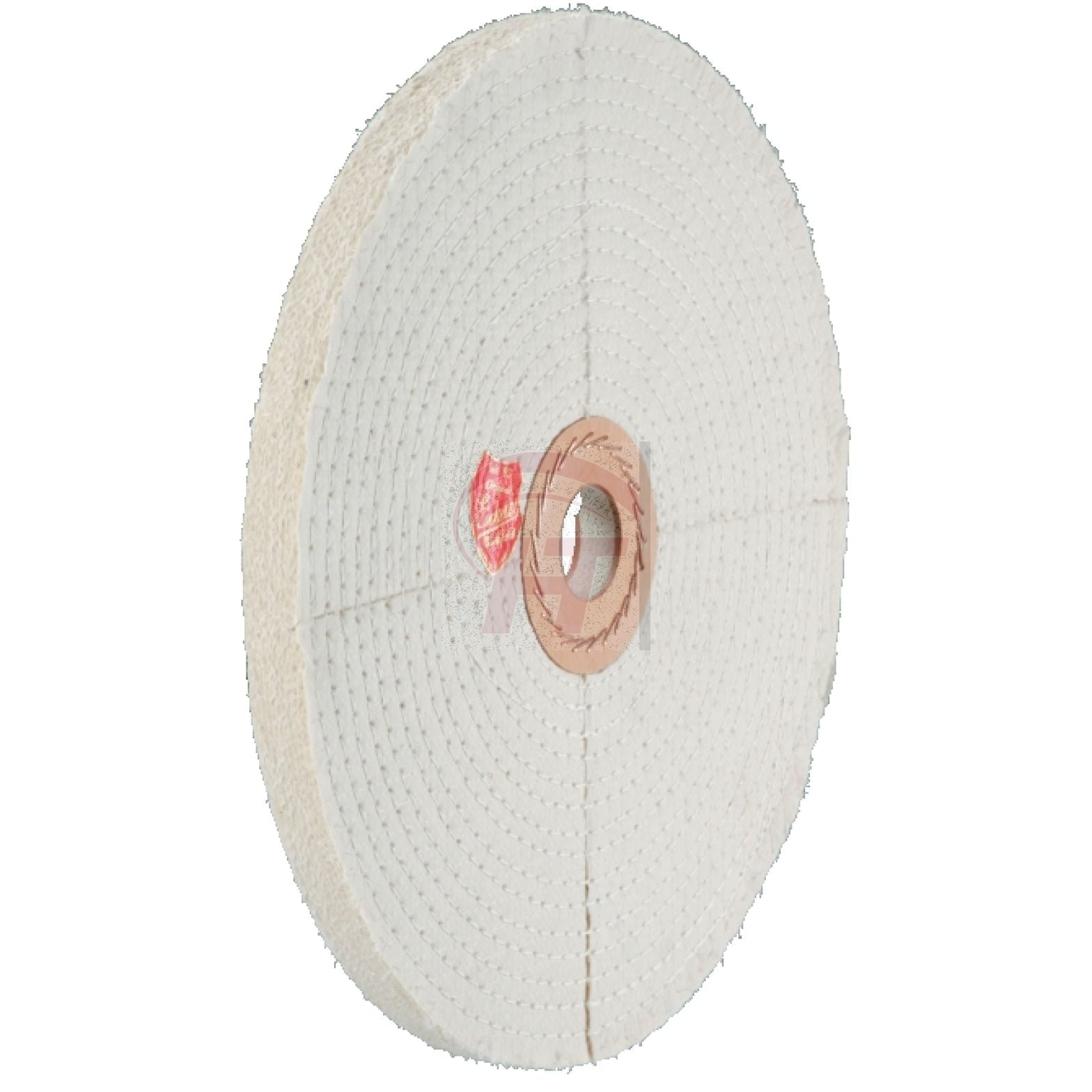

Sisal-Cotton Cut-Buffing Discs SB-VR

SB-VR cut-buffing discs consist of a manifold of sisal sheets, each covered with cotton on both sides. Compared to the grinding work of pure sisal, sisal-cotton tools additionally display a surface smoothing effect due to the cotton inserts. Moreover, compared to other SB polishing discs, SB-VR polishing tools allow the highest counter pressure for improved effectiveness. As a result, SB-VR deliver matt to silky glossy surfaces, which in industrial practice are often further processed without requiring additional finish-buffing.

Product Features

• 4 - 10 plies made of dense cotton covered sisal fabric, both fabrics with 45° biased weave
• Concentric quilted circles made of natural linen machine thread, which wears off during the polishing process without leaving any residue
• Individually calibrated, for low-vibration concentricity and a smooth polished finish
• Diameter 100 - 400 mm
• Configurable width 10 mm (4 ply) - 25 mm (10 ply)
• Bore hole diameters 10 - 60 mm
• Optional with bore hole reinforcement (for disc diameters > 150 mm)

Sisal

Sisal is obtained from specific agave species in global cultivation areas. Similar to other natural fibers, sisal fibers are very resistant to physical and chemical stresses. In addition, sisal is very tough, has high tensile strength and is also characterized by its high rigidity. This is why sisal is particularly suitable for polishing and coarse cut-buffing of metals and especially steel.

Sisal-Cotton Composite

Our sisal-cotton composites consist of sisal fabric with a dense, diagonally biased plain weave. The sisal fabric is covered on both sides with light raw cotton fabric and stitched together with fine cotton threads at a seam distance of approx. 10 mm. The resulting firm sisal-cotton composite material is then further processed into the variants of the EICKELIT SB-X cut-buffing tools.

Dimensions

•
• * Observe safety regulations for the minimum diameter of drive shafts!

Bore Holes

• We manufacture your desired bore individually for you. We cover every known bore diameter for industrial polishing machines *
• If you need other bore diameters or special adapters (e.g. for hexagonal shafts, with keyways, etc.), we will be happy to manufacture them on request **

* Polishing discs drilled individually at the customer's request are excluded from exchange or return in accordance with our Terms of Cancellation.

** Observe safety regulations for the minimum diameter of drive shafts!
