Polishing set "complete" Varnishes & Plastics | 6 parts for drill | 80 mm
80 mm | 6 mm shank
Contents: polishing discs | compounds
cut-buffing | high-gloss | super-finish
Polishing-kit "complete" for Plastics & Varnishes | drills | 80mm
With the six-part drill complete polishing-kit for plastics and varnishes, even hard-to-reach, finely ground components can be refined to a super finish. The surface treatment is performed in three discrete steps: pre-polishing, main polishing and super finish. With this complete polishing set, flawless shine and transparency can be reached on on carefully ground surfaces.
Product features

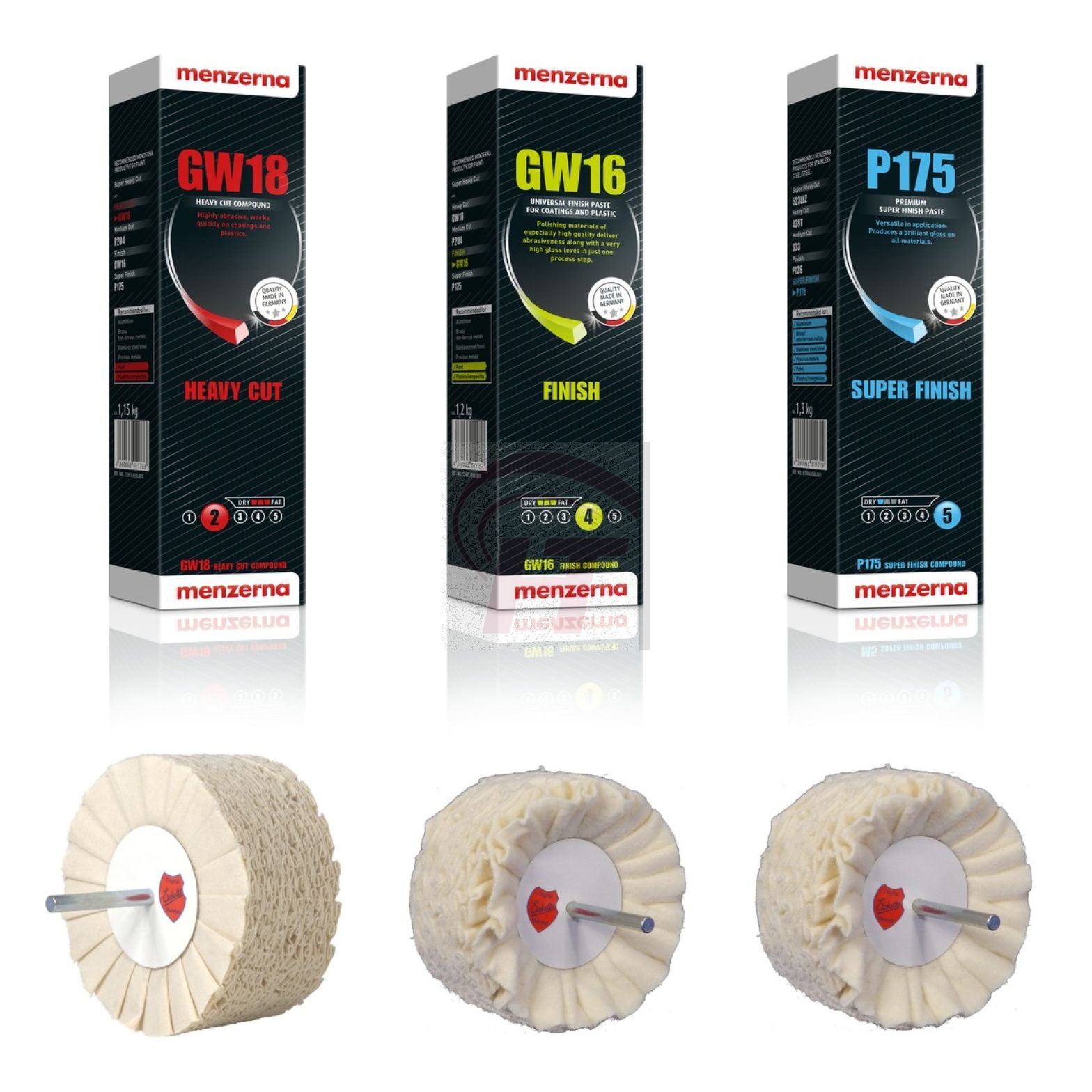

- Shank Tool EFFEKTA N2550, 80 x 6 mm
- Shank Tool EFFEKTA FM230, 80 x 6 mm
- Shank Tool EFFEKTA FM209, 80 x 6 mm
- Vmax = 30 m/s, Umax = 7.200 1/min
- Pre-Polishing Compound "Heavy Cut" Menzerna GW18 (ca. 1,1 kg)
- Finish Polishing Compound for plastics & varnishes Menzerna GW16 (ca. 1,3 kg)
- Super Finish Compound for Metals and Polymers Menzerna P175 (ca. 1,35 kg)
Application
- Wear protective equipment and follow safety regulations!
- Roughen the polishing discs before use using a suitable dressing tool
- Wet rotating tool sparingly with polishing paste
- Set your polishing drive to the correct speed. You determine this based on the cutting speeds suitable for your polishing project and the wheel diameter you are using.
Step 1
- The evenly sanded and cleaned surface crosswise with the shank tool EFFEKTA N2550 together with Menzerna GW18 quickly pre-polish on lacquer and thermoset surfaces at approx. 20-25 m/s (4,900 - 6,200 rpm), on thermoplastic workpieces at approx. 10 -15 m/s (2,400 - 3,700 rpm) until the workpiece has an even, satin-matt surface without scratches or grooves
- After polishing, clean the surface of abrasion and paste residues with a dry, soft and lint-free cloth. If necessary, degrease the workpiece with a tenside solution
Step 2
- The evenly pre-polished and cleaned surface in cross passes with a shank tool EFFEKTA FM230 together with Menzerna GW16 on lacquer and thermoset surfaces at approx. 20-25 m/s (4,900 - 6,200 rpm), on thermoplastic workpieces at approx. 10 -15 m/s (2,400 - 3,700 rpm) quickly polish to a high gloss
- After polishing, clean the surface with a dry, soft, lint-free cloth. If necessary, degrease the workpiece with a tenside solution
Step 3
- The clean, mirror-polished surface using the EFFEKTA FM209 shank tool and Polish the Menzerna P175 on lacquer and thermoset surfaces at approx. 20-25 m/s (4,900 - 6,200 rpm), on thermoplastic workpieces at approx. 10 -15 m/s (2,400 - 3,700 rpm) quickly in cross passes to a super finish
- The Super Finish Paste P175 only leaves an invisible microfilm on the flawless surface. To protect this surface, mechanical cleaning after superfinishing is usually avoided
Protective Equipment when Polishing
When grinding and polishing, the work equipment used creates considerable health risks. It is therefore compulsory to wear suitable personal protective equipment for work safety when grinding and polishing. In particular, all rotating polishing and brushing tools may only be operated with suitable covers for reasons of occupational safety.
Wear eye / face protection
The fine dust emanating from polishing is harmful to the eyes. Flying parts can cause serious injuries to the face and eyes.
Wear respiratory protection
Fine dust contaminated with heavy metals and respirable, which can only be retained with suitable respiratory protection, is produced during polishing.
Wear protective clothing
Flying parts can cause sensitive injuries all over the body.
Wear gloves
In general, gloves should be worn when grinding and polishing. If there is a risk of being wound up (e.g. drills, processing small parts, etc.), gloves may be prohibited on the basis of a risk assessment.
Wear ear protection
Due to the noise exposure during grinding and polishing, it is necessary to wear suitable hearing protection on a regular basis.
