KONSTANT Buffing Wheel | Cotton "Very Firm" | Configurable

Material: N189

4 x 4 Layers

Ø 150 - 600 mm

Weight: kg
€29.81
Incl. VAT (Total price depending on the VAT rate of the country of delivery), excl. Shipping Cost
Availability
2-3 Weeks *
  • Buy 3 for €28.92 each and save 3%
  • Buy 5 for €27.72 each and save 7%
  • Buy 10 for €26.23 each and save 12%
Item No.
072-N189-conf

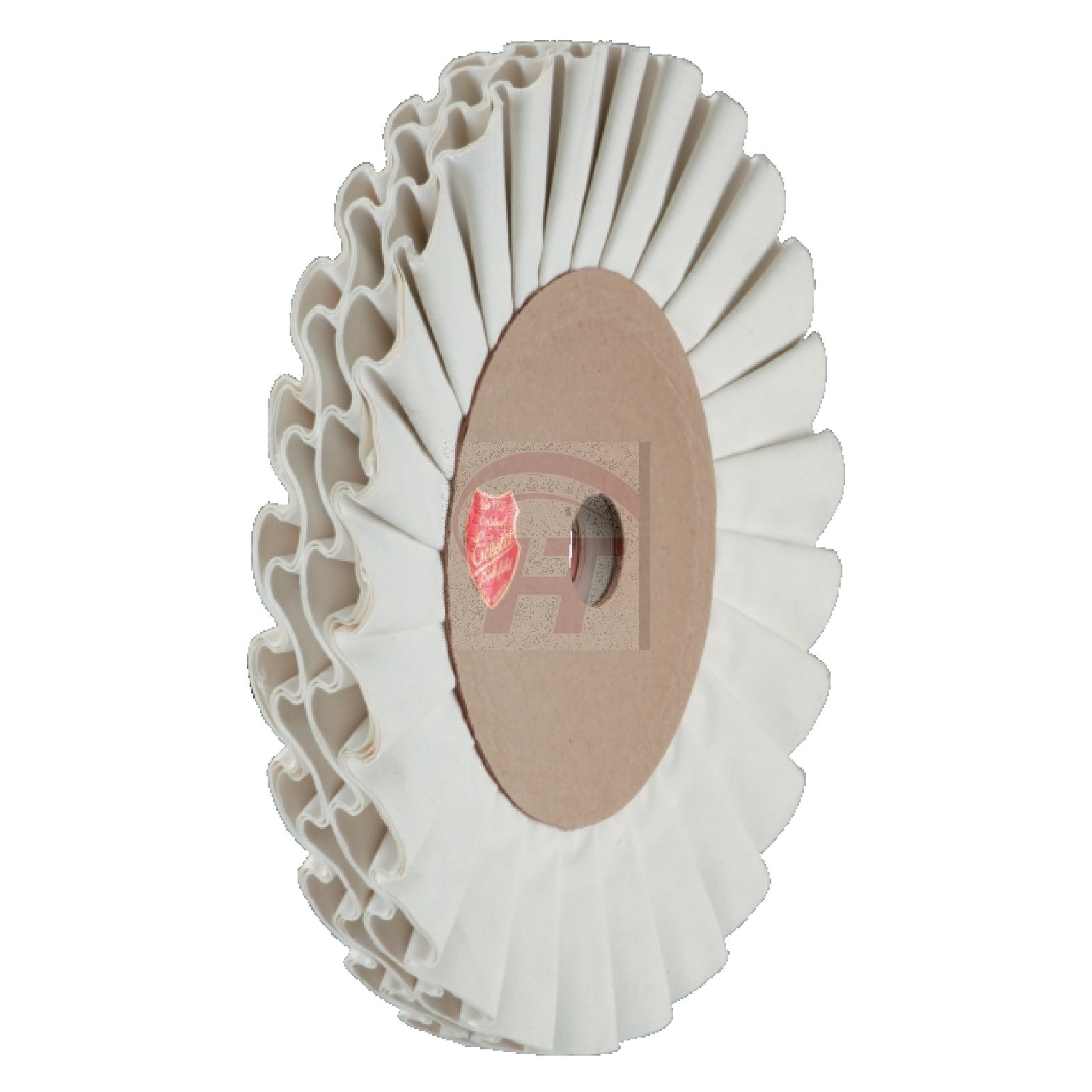

Cotton Buffing Wheel KONSTANT 4-4

KONSTANT 4-4 are high-efficiency buffing tools that are particularly suitable for the buffing and finish of non-ferrous metals and stainless steel.  4 x 4 plies of raw cotton fabric, twisted diagonally against its weaving direction, are arranged in a spiral around a cardboard core and thus provide a solid contact pressure. The pleated folds of the KONSTANT 4-4 polishing discs ensure effective cooling of the work pieces even at high performance levels.

Product Features

  • Buffing wheel made of 4 x 4 pleated plies of raw cotton fabric with 45° biased weave
  • Medium to solid contact pressure for effective cut-buffing and fine-buffing on non-ferrous metal and stainless steel
  • Adapts flexible to complex surface geometries
  • Diameter 150 - 600 mm
  • Configurable bore holes 10 - 60 mm
  • Calibrated for low-vibration concentricity
  • Optionally roughened ready for use

Raw Cotton Fabric N189

N189 is a very strong raw cotton plain weave fabric with a specific weight of approx. 260 g / m². Buffing tools made of N189 are used in particular for the effective cut-buffing of non-iron, steel and stainless steel.

Dimensions

VR Zeichnung
  • Pleated Cotton Buff KONSTANT Dimensions Table
  • * Observe the safety regulations for the minimum diameter of drive shafts!

Bore Holes

  • We manufacture your desired bore individually for you. We cover every known bore diameter for industrial polishing machines *
  • If you need other bore diameters or special adapters (e.g. for hexagonal shafts, with keyways, etc.), we will be happy to manufacture them on request **

* Polishing discs drilled individually at the customer's request are excluded from exchange or return in accordance with our Terms of Cancellation.

** Observe safety regulations for the minimum diameter of drive shafts!



Trimming Cotton Buffing Wheels

  • Careful preparation of the buffing / polishing tool is a prerequisite for an optimal surface result. Please follow our recommendations for trimming cotton buffing wheels
  • Used buffing discs should also be dressed again on a regular basis. This is especially true if residues of polishing paste have solidified on the working surface or the buffing wheels are heavily contaminated with material abrasion

General Information on Polishing
