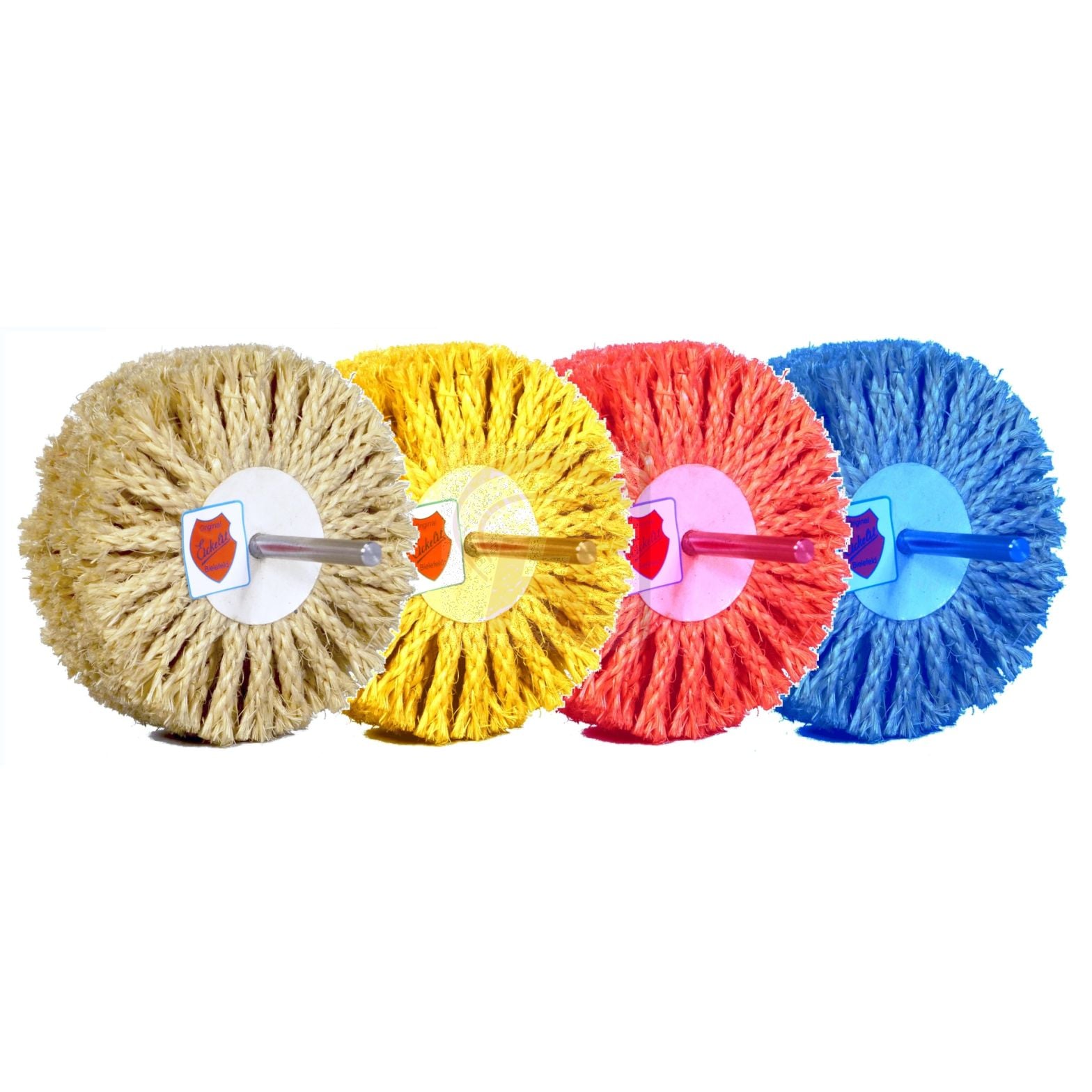

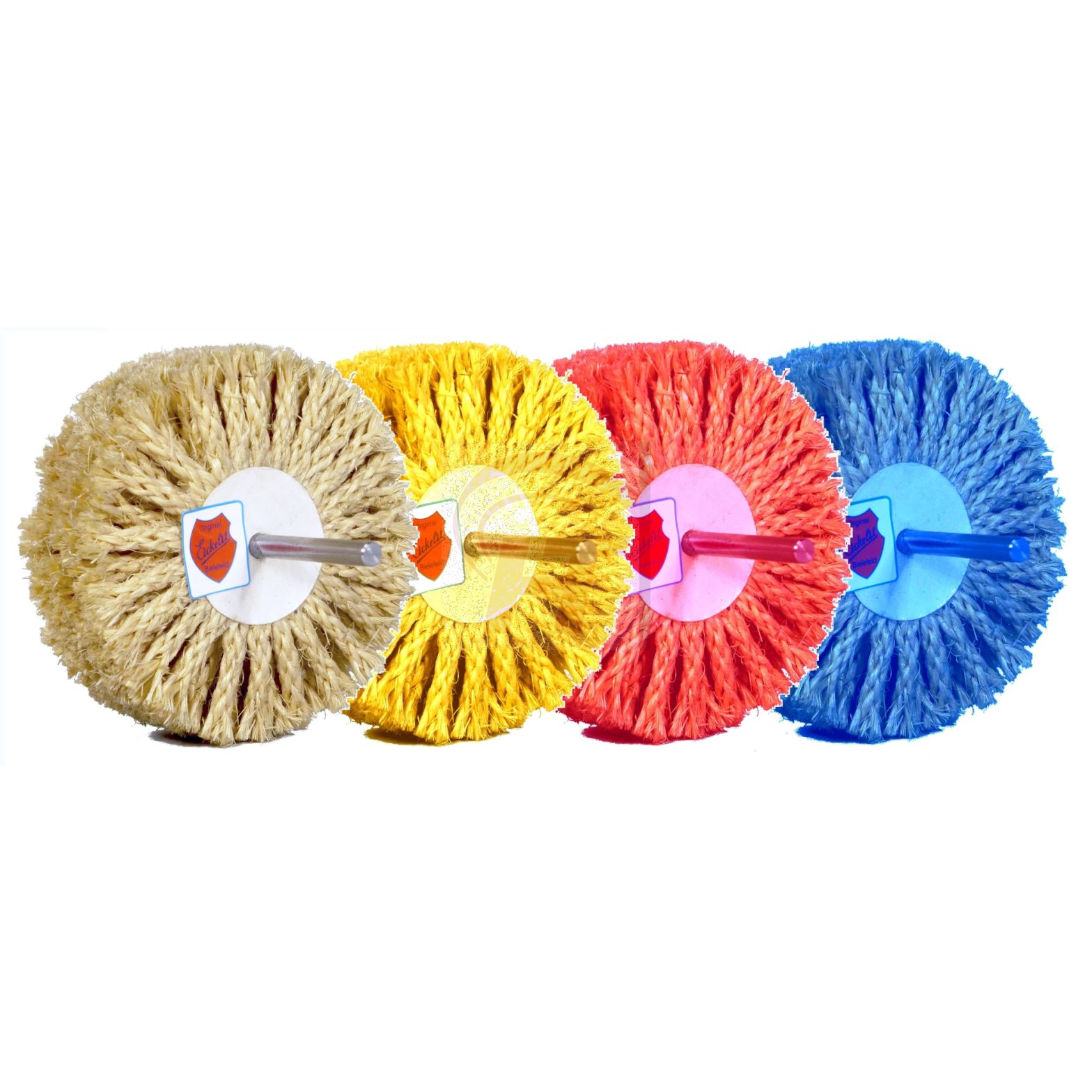

Shank Mounted Sisal-Cord Brush Impregnated

8-Strand Knotted Sisal Cords

Ø 100 - 150 mm x 30 mm

6/8 mm Shaft

Weight: kg
€30.94
Incl. VAT (Total price depending on the VAT rate of the country of delivery), excl. Shipping Cost
Availability
3-4 Weeks *
  • Buy 3 for €30.01 each and save 3%
  • Buy 5 for €28.77 each and save 7%
  • Buy 10 for €27.23 each and save 12%




Item No.
602-SiKoi-conf

Sisal Cord Cut-Buffing Brush

Cut-buffing brushes with 8-strand knotted sisal cord bristles are especially suitable for rough surface processing of workpieces with a complex surface profile. In particular the flexible sisal bristles can penetrate into recesses, undercuts, corners and edges that are otherwise difficult to access. Together with a suitable, coarse polishing paste, sisal cord cut-buffing brushes provide a fine finish that is suitable as preparation for subsequent buffing, coating or anodizing.

Our shank tools are miniature versions of the tried and tested EICKELIT designs. They complement the buffing process when it comes to the precise cut-buffing and finishing, particularly of surfaces with complex geometries.

Impregnation

The EICKELIT impregnation system allows an individual optimization of the service life, aggressiveness and absorption capacity of grinding and polishing pastes.
Please use the following table to select the most suitable impregnation for your application:



Tabelle Imprägnierungssystem

Product Features

  • Shank tool made from 8-strand knotted sisal cords with a thickness of 5 mm
  • Diameter from 100 - 150 mm
  • Width of 25 mm
  • Tensioning mandrel with a diameter of 6 or 8 mm, cast with thermosetting synthetic resin compound
  • Recommended optimal circumferential speed: 25 - 40 m/s
  • Maximum permissible speed (depending on the diameter): 5.000 - 10.000 1/min

Sisal

Sisal is obtained from specific agave species in global cultivation areas. Similar to other natural fibers, sisal fibers are very resistant to physical and chemical stresses. In addition, sisal is very tough, has high tensile strength and is also characterized by its high rigidity. This is why sisal is particularly suitable for polishing and coarse cut-buffing of metals and especially steel.

For sisal cord brushes, we only use braided cords of European manufacturers containing highest-quality sisal raw material with particularly long fibers. The cords of approx. 5 mm thickness are braided from 8-strands. This makes our cord brushes particularly soft and flexible and at the same time very resistant to heavy duty usage during polishing. Therefore, our Sisal cord brushes ensure an excellent service life and effective polishing attack.

Dimensions

VR Zeichnung
  • Sisal Cord Cut-Buffing Shank-Tool Dimensions Table
  • * Observe the safety regulations for the minimum clamping depth of shank tools!


Areas of Application

  • For polishing and cut-buffing on manual polishing machines or in robot systems
  • Rough prepolishing and cleaning of workpieces with complex geometries (edges, undercuts, corners, etc.)
  • Matting and satin finishing of steels and non-ferrous metals (fittings, profiles, etc.)
  • Large-scale polishing and cut-buffing of cast, tool and stainless steels (pots, sinks, machine knives, cast parts, etc.)
  • Edge processing in the furniture industry

General Information on Polishing


Protective Equipment when Polishing

When grinding and polishing, the work equipment used creates considerable health risks. It is therefore compulsory to wear suitable personal protective equipment for work safety when grinding and polishing. In particular, all rotating polishing and brushing tools may only be operated with suitable covers for reasons of occupational safety.

ISO 7010 M013 Wear eye / face protection

Wear eye / face protection

The fine dust emanating from polishing is harmful to the eyes. Flying parts can cause serious injuries to the face and eyes.

ISO 7010 M017 Wear respiratory protection

Wear respiratory protection

Fine dust contaminated with heavy metals and respirable, which can only be retained with suitable respiratory protection, is produced during polishing.

ISO 7010 M010 Wear protective clothing

Wear protective clothing

Flying parts can cause sensitive injuries all over the body.

ISO 7010 M009 Wear gloves

Wear gloves

In general, gloves should be worn when grinding and polishing. If there is a risk of being wound up (e.g. drills, processing small parts, etc.), gloves may be prohibited on the basis of a risk assessment.

ISO 7010 M003 Wear ear protection

Wear ear protection

Due to the noise exposure during grinding and polishing, it is necessary to wear suitable hearing protection on a regular basis.
