Polishing set "super-finish" copper & brass | 4 parts for polishing stand | 300 mm

300 mm | Bore configurable

Contents: polishing discs | compounds

high-gloss | super-finish

Weight: kg
€156.50 -5% You save €7.82
€148.68
Incl. VAT (Total price depending on the VAT rate of the country of delivery), excl. Shipping Cost

Discount compared to single retail prices

Availability
2-3 Days *
  • Buy 1 for €24.99 each and save 5%
  • Buy 1 for €32.21 each and save 5%
  • Buy 1 for €42.23 each and save 5%
  • Buy 1 for €49.26 each and save 5%
Item No.
500-pb-cu-300-2

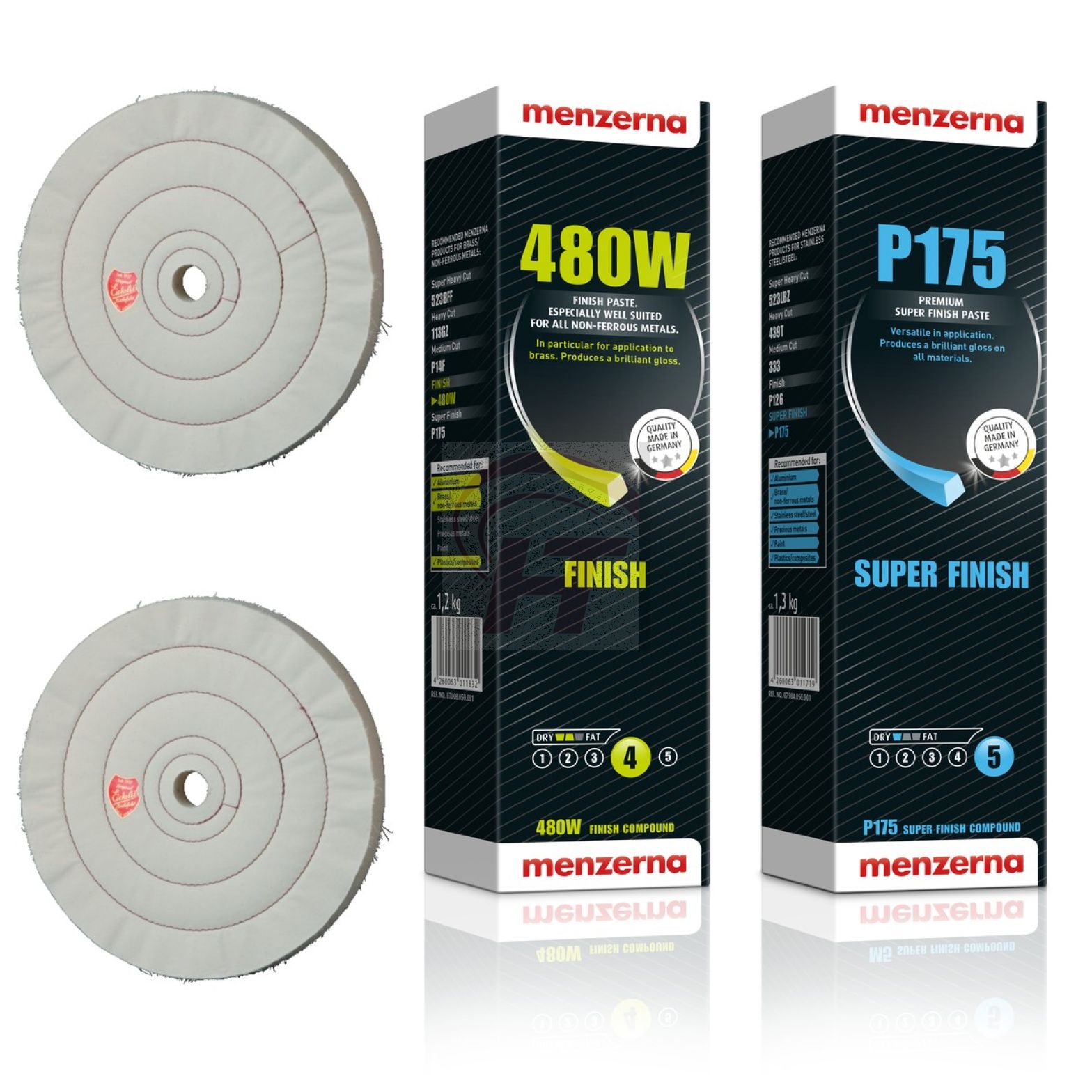

Brass & Copper super finish polishing set for the polishing stand | 300mm

Four-part super finish polishing set for Brass & Copper especially for the polishing block or grinding block with mounting flange or conical thread. This polishing set reliably delivers the flawless mirror finish that is characteristic of Brass & Copper on carefully pre-polished Brass & Copper surfaces.

Product features

  • High-gloss polishing wheel Effecta N2550, diameter 300 mm with freely configurable bore
  • Super Finish Effecta FM230 polishing wheel, diameter 300 mm with freely configurable bore
  • Vmax = 40 m/s, Umax = 2,600 rpm
  • High-gloss polishing paste Menzerna 480BLF (approx .1.3kg)
  • Super Finish polishing paste Menzerna P175 (approx. 1 .35 kg)

Application

  • Wear protective equipment and follow safety regulations!
  • Roughen the polishing discs before use using a suitable dressing tool
  • Wet rotating tool sparingly with polishing paste
  • Measure the pressure carefully! Too high contact pressure and/or too low speeds lead to overheating of the workpiece with uneven surfaces that can no longer be improved by polishing!

Step 1

  • The evenly pre-polished and cleaned surface in cross passes with the Effecta N2550 polishing wheel and Menzerna 480BLF at approx. 30-35 m/s (1,900 - 2,300 rpm) quickly polish to a high gloss
  • After polishing, the surface is cleaned with a dry, soft and lint-free cloth. If necessary, degrease the workpiece with a suitable solvent or Viennese lime

Step 2

  • The clean, high-gloss polished surface is achieved with the Effecta FM230 Super Finish polishing disc and Menzerna P175 at approx. 30-35 m/s (1,900 - 2,300 rpm) quickly in cross passes until the desired mirror finish is achieved
  • The Super Finish Paste P175 only leaves an invisible microfilm on the flawless surface. To protect this surface, one usually avoids mechanical cleaning after superfinishing
