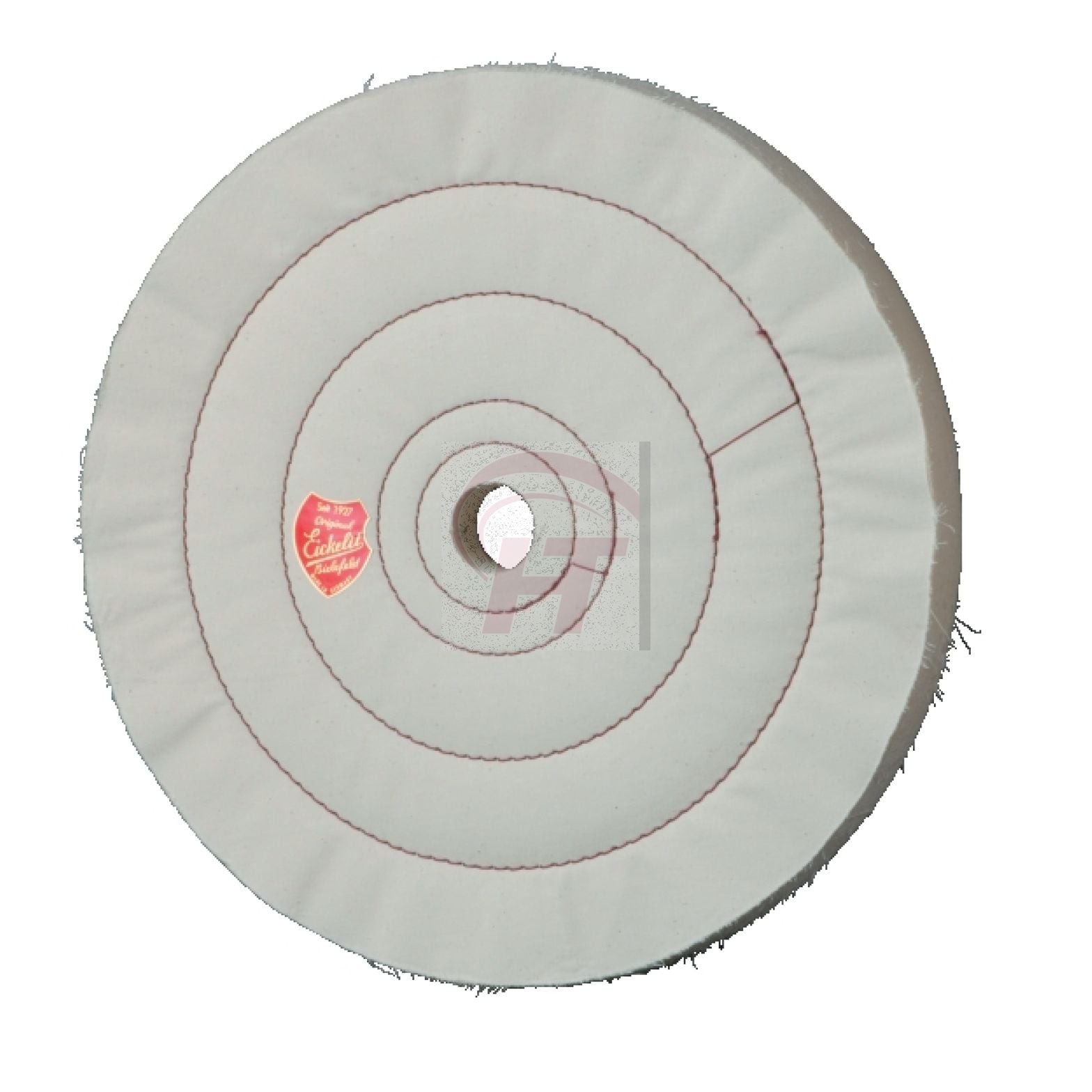

Buffing Disc | Cotton "Firm" | Configurable

Material: N2550

Ø 100 - 600 mm

Thickness: 10 – 30 mm

Weight: kg

€10.00

Incl. VAT (Total price depending on the VAT rate of the country of delivery), excl. Shipping Cost

Availability

2-3 Weeks *

Thickness

Diameter

Bore Hole

Number of Seams

Bore reinforcement and roughening

None

Bore reinforcement 60 mm + €2.50

Bore reinforcement 80 mm + €3.50

Bore reinforcement and roughening + €4.00

Bore reinforcement and roughening + €5.50

Bore reinforcement and roughening + €7.00

Qty

Copy Product Link

Item No.

011-N2550-conf

Description

The EICKELIT professional polishing discs “FULL ROUND” consist of a large number of individual layers of high-quality, 100 % pure raw cotton fabric. These are joined with stitching seams made from a high-performance linen machine thread. The random alignment of the layers and precise calibration ensure low-vibration concentricity and an absolutely uniform polishing pattern.

As a tried-and-tested standard for all stages of metal polishing for decades - from pre-polishing to high-gloss finishing - these polishing wheels offer particularly effective performance thanks to the first-class cotton grades we use and enable safe, low-dust work.

The N2550 is a strong fabric made of raw cotton, which is produced in plain weave and has a specific weight of approximately 230 g / m². Polishing wheels made of N2550 are mainly used for the main polishing of non-ferrous metals such as steel and stainless steel.

PRODUCT FEATURES

100 % pure raw cotton fabric made from Nessel N2550, density approx. 230 g / m²
Random alignment of the fabric layers
Individually calibrated discs for low-vibration concentricity
Working diameter 100 - 600 mm
Thickness 10 - 30 mm
Freely selectable number (1- 10) of machine-stitched and easy-to-remove topstitching seams made from high-quality linen machine thread without synthetic fibres
Free choice of bore diameter 10 - 60 mm
Optionally roughened for immediate use
Optionally with 50 mm bore reinforcement (from diameter 150 mm)

Bore Holes

We manufacture your desired bore individually for you. We cover every known bore diameter for industrial polishing machines *
If you need other bore diameters or special adapters (e.g. for hexagonal shafts, with keyways, etc.), we will be happy to manufacture them on request **

* Polishing discs drilled individually at the customer's request are excluded from exchange or return in accordance with our Terms of Cancellation.

** Observe safety regulations for the minimum diameter of drive shafts!

Quilted Seams

EICKELIT polishing discs have machine-sewn and easy-to-remove concentric quilting circles made of high-quality linen machine thread without synthetic fibers
Standard polishing discs have only one concentric stitching seam with a diameter of 50 - 80 mm (depending on the disc diameter)
On request, we produce additional stitching circles in evenly spaced radii *
We manufacture special spacing distributions on request

* Polishing discs manufactured with individual quilting circles at the customer's request are excluded from exchange or return in accordance with our Terms of Cancellation.

Application

Areas of Application

Cotton buffing discs are suitable as all-round buffing tools for all materials and finish levels, depending on the material to be buffed and the type of cotton chosen
Through adding concetric seams, the firmness of cotton buffing discs can be adjusted to individual needs. Quilted cotton buffing discs provide a sound counter pressure for particularly effective polishing
Quilted cotton buffing discs are preferably used for cut-buffing and high-gloss finish of steel and, in particular, of non-ferrous metals

Heat Build-up of Cotton Buffs

Due to their high performance with a comparatively low air flow, cotton buffing discs may build-up considerable amounts of frictional heat
This could lead to lokal overheating and thermal damage of workpiece surfaces and/or the fast and thus non economic consumption of the polishing disc through pyrolysis
In order to reduce the risk of the overheating of the workpiece and/or the buffing disc, you should adjust the contact pressure with particular care
Furthermore, you should pursuit the reduction of contact time with the workpiece to the absolute minimum necessary

Safety instructions

Protective Equipment when Polishing

When grinding and polishing, the work equipment used creates considerable health risks. It is therefore compulsory to wear suitable personal protective equipment for work safety when grinding and polishing. In particular, all rotating polishing and brushing tools may only be operated with suitable covers for reasons of occupational safety.

Wear eye / face protection

The fine dust emanating from polishing is harmful to the eyes. Flying parts can cause serious injuries to the face and eyes.

Wear respiratory protection

Fine dust contaminated with heavy metals and respirable, which can only be retained with suitable respiratory protection, is produced during polishing.

Wear protective clothing

Flying parts can cause sensitive injuries all over the body.

Wear gloves

In general, gloves should be worn when grinding and polishing. If there is a risk of being wound up (e.g. drills, processing small parts, etc.), gloves may be prohibited on the basis of a risk assessment.

Wear ear protection

Due to the noise exposure during grinding and polishing, it is necessary to wear suitable hearing protection on a regular basis.

Buffing Disc | Cotton "Firm" | Configurable

PRODUCT FEATURES

Cotton Quality

Raw Cotton Fabric N2550

Dimensions

Bore Holes

Quilted Seams

Areas of Application

Heat Build-up of Cotton Buffs

Trimming Cotton Buffing Wheels

General Information on Polishing

Protective Equipment when Polishing

Wear eye / face protection

Wear respiratory protection

Wear protective clothing

Wear gloves

Wear ear protection
