Polishing set "complete" | 9 parts for angle grinder | M14 adapter | 200 mm
200 mm | 14 mm bore
Contents: polishing discs | compounds | adapter M14
cutting | polishing | colouring | super-finish
Weight:
kg
Item No.
500-ws-inox-a-200-4
Stainless steel "super finish" polishing set for angle grinders | 200 mm
With the nine-piece super finish polishing set for stainless steel, finely ground stainless steel components can be refined to a super finish using a hand polishing machine or angle grinder. The surface treatment is carried out in four steps: pre-polishing, main polishing, high-gloss polishing and super finish. With this super finish polishing set, you can reliably achieve the bluish mirror shine characteristic of stainless steel in the yacht standard on carefully polished stainless steel surfaces.
Product features

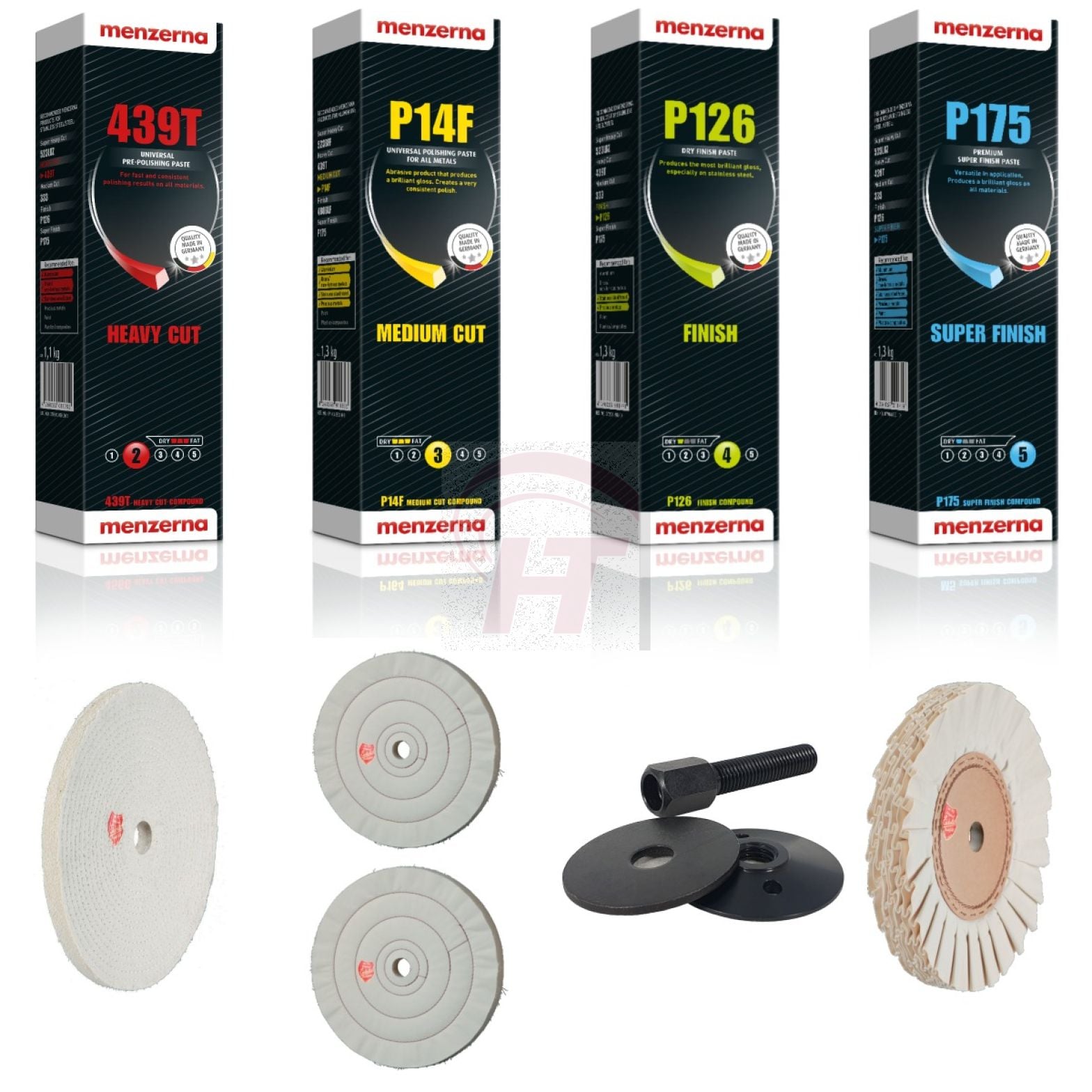

- Cut buffing disc Sisal-Cotton SB-VR-10, D = 200 mm, S = 25 mm, B = 14 mm
- Cotton buffing disc, raw cotton fabric N2550 "firm", 3 quilting seams, D = 200 mm, S = 25 mm, B = 14 mm
- High gloss buffing disc, raw cotton fabric N2501 "light", 3 quilting seams, D = 200 mm, S = 25 mm, B = 14 mm
- Effekta FM230/X-1 super finish pleated buffing wheel, D = 200 mm, B = 14 mm
- Vmax = 30 m/s, Umax = 3,800 rpm
- Pre-polishing paste "Heavy Cut" Menzerna 439T a> (approx. 1.2 kg)
- Stainless steel medium-cut poishing compound Menzerna P14F (approx. 1, 3 kg)
- Menzerna P126 INOX high gloss compound
- Super Finish polishing paste Menzerna P175 (approx. 1 .35 kg)
- M14 mandrel for angle grinders, maximum disc thickness: approx. 50 mm, 1 flat nut M14 left-hand thread / approx. 70 mm diameter, 1 flange 2 x 14 x 70 mm
Application
- Wear protective equipment and follow safety regulations!
- Roughen the polishing discs before use using a suitable dressing tool
- Wet rotating tool sparingly with polishing paste
Step 1
- The evenly sanded and cleaned surface crosswise with the cut buffing disc Sisal-Cotton SB-VR-10 together with Menzerna 439T quickly pre-polish at approx. 25-30 m/s (2,400 - 2,900 rpm) until the workpiece has an even, satin-matt surface without scratches or grooves
- After polishing, clean the surface of abrasion and paste residues with a dry, soft and lint-free cloth. If necessary, degrease the workpiece with a suitable solvent or Viennese lime
Step 2
- The evenly pre-polished and cleaned surface in cross passes with the cotton buffing disc, raw cotton fabric N2550 "firm" together with Menzerna P14F at approx. 25-30 m/s (2,400 - 2,900 rpm) quickly polish to a high gloss
- After polishing, clean the surface with a dry, soft, lint-free cloth. If necessary, degrease the workpiece with a suitable solvent or Viennese lime
Step 3
- Polish the clean, glossy surface using the high gloss buffing disc, raw cotton fabric N2501 "light" and Menzerna P126 INOX high gloss compound at approx. 25-30 m/s (2,400 - 2,900 rpm) quickly and in cross passes to a fine high gloss finish
Step 4
- Buff the clean, mirror-polished surface using the Effekta FM230/X-1 super finish pleated buffing wheel and Menzerna P175 at approx. 25-30 m/s (2,400 - 2,900 rpm) in quick cross passes to a perfect super finish
- The Super Finish Paste P175 only leaves an invisible microfilm on the flawless surface. To protect this surface, mechanical cleaning after superfinishing is usually avoided
