Clamping mandrel for angle grinder M14 | 15 - 30 mm

Clamping mandrel | angle grinder M14

Shaft: 14 mm

Wheel thickness: 15 - 30 mm

Disc diameter: < 200 mm

Weight: kg

€23.80

Incl. VAT (Total price depending on the VAT rate of the country of delivery), excl. Shipping Cost

Availability

2-3 Days *

Adaptor

Clamping Mandrel M14 30 mm

Qty

Copy Product Link

Item No.

300-WS-M14-30

Description

The M14 mandrel for angle grinders allows sanding pads or smaller polishing discs to be securely connected to common hand-held angle grinders. This makes it easier to work in hard-to-reach places and large or stationary components. The M14 mandrel allows for the secure attachment of a variety of materials and discs for machine grinding and polishing. The scope of delivery includes a mandrel with a left-hand thread, one counter flange and a flat nut.

Description

Mandrel for holding rotating tools such as polishing discs, grinding fleece disks, brushes etc. on angle grinders
Optimal use together with EICKELIT discs or polishing materials on rotating drive units
Very good suitability for polishing stationary components
For polishing wheels up to 200 mm

Dimensions

Maximum disc thickness: approx. 30 mm
Diameter of mandrel: 14 mm
Mounting: M14
Total length: approx. 140 mm
Blued quality, Made in Germany

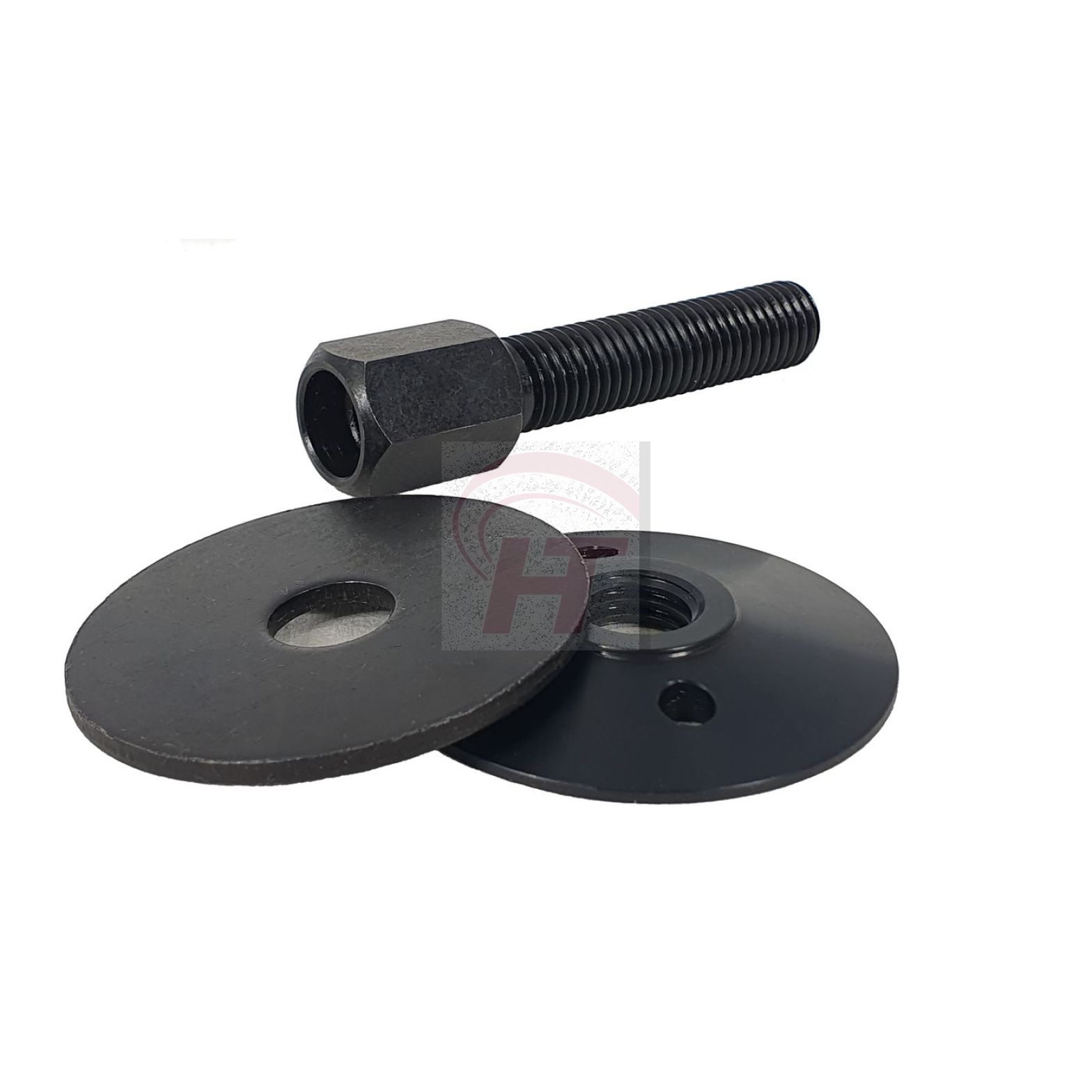

Scope of delivery

1 mandrel M14 / 14 mm
1 flat nut M14 / approx. 70 mm diameter
1 flange 2 x 14 x 70 mm

Safety instructions

Safety information

Maximum permitted disc diameter: 200 mm
The mandrel may only be used together with the supplied components
Polishing discs must always be secured with suitable flange discs
The flange diameter [d] must be chosen so that it covers at least half the diameter of the washer [D] used: d = 1/2 D
The flat nut must always be screwed in over all threads
Never exceed the manufacturer's specifications for the maximum speed of the clamped discs
Observe our instructions for working safely
