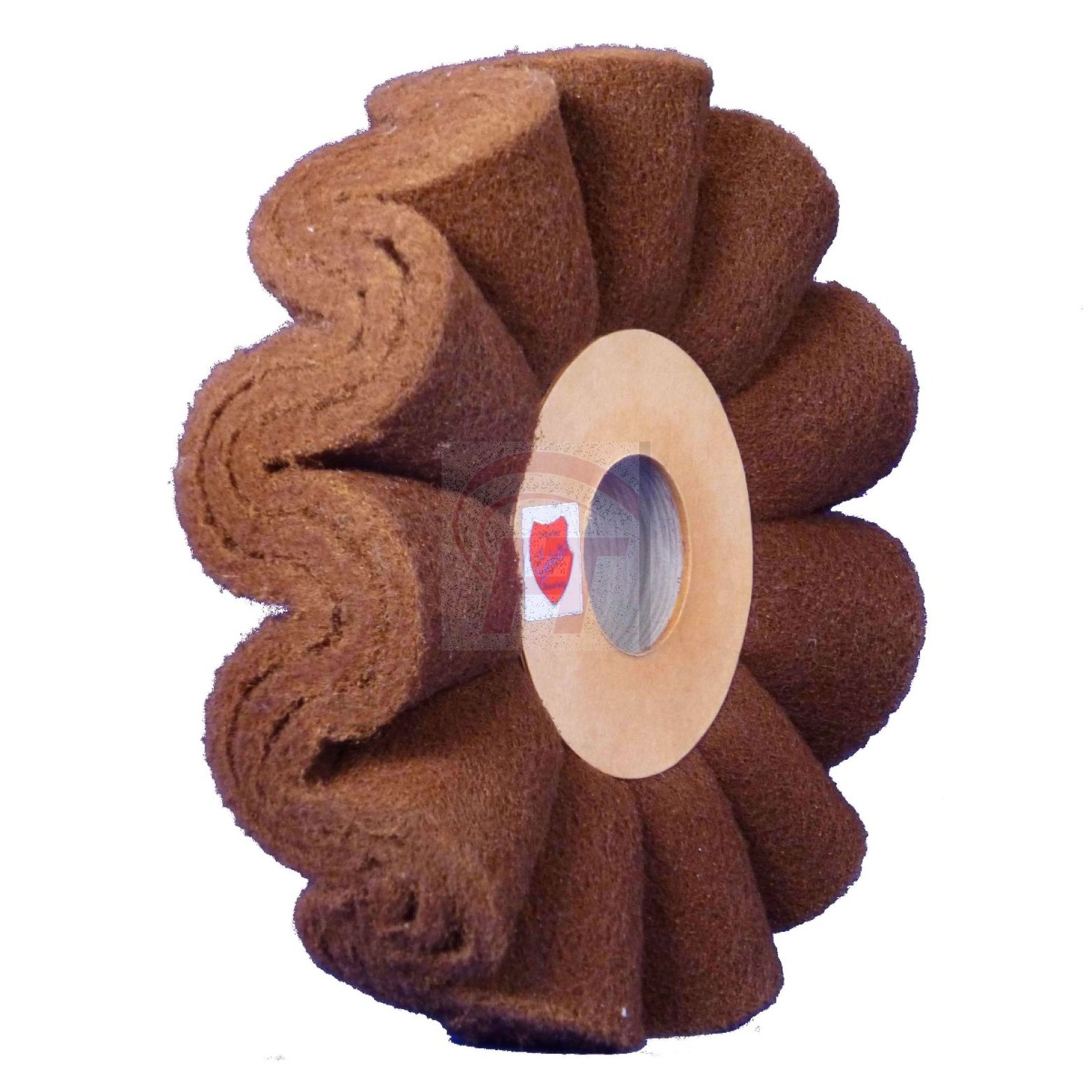

Corrugated Fleece Disc | Grit 100 "Coarse" AO-003 | 400 x 50 mm
AlOx / "Coarse" / Grit 100
14 Waves | 3 Layers
Ø 200 mm - 400 mm | Thickness: 50 mm
Abrasive FLEECE corrugated polishing DISCS for cleaning and matting | AO-003 "Coarse" | 400 x 50 mm
EICKELIT corrugated abrasive fleece polishing discs are ideal for cleaning and matting large areas of non-ferrous metals and stainless steel. The corrugated shape creates a strong cooling air flow, which optimizes the efficiency and durability of the polishing disc. The flexible fleece also allows even processing of shaped surfaces. Our selection of raw materials offers a wide variety of hardness levels and sanding thicknesses, each made from aluminum oxide and silicon carbide.
PRODUCT FEATURES
- Three layers of abrasive fleece, laid in 14 wide waves around a solid cardboard core
- Diameter ca. 400 mm
- Trim width approx. 50 mm / core thickness approx. 30 mm
- Freely selectable holes 10 - 60 mm
Dimensions
- * Observe safety regulations for the minimum diameter of drive shafts!
FIBER ABRASIVE FLEECE
- When producing abrasive fleece, abrasive grinding bodies such as carborundum (made of silicon carbide) or corundum (made of aluminum oxide) are bonded to a nylon fiber nonwoven with a synthetic resin. As a result, the hardness and cooling effect of the abrasive fleece varies depending on the fiber thickness, the fleece density and the physical-chemical properties of the binding agent used.
- Due to its free-flowing design, the fiber abrasive fleece is self-cleaning and does not clog during the grinding process. In addition, the chemical and physical strength of the fiber composite enables not only the use in dry processes, but also the use of water or oil media.
- Because the nonwoven is flexible, it enables efficient processing of even complex profiles and geometries with low removal. Due to the constant wear of the carrier material, new abrasive particles are constantly released in uniform concentrations. Accordingly, polishing tools made of fiber abrasive fleece are extremely low-maintenance and provide a uniform grinding pattern throughout their entire service life.
- Please follow the link for further information on our range of available abrasive fleece variants
ALUMINUM OXIDE (AO) / "CORUNDUM"
Corundum consists of over 95 percent aluminum oxide and is the most frequently used abrasive particle in abrasives. However, as the degree of purity increases, its hardness and brittleness increase, which has a negative effect on the longevity of the abrasive grain and thus on the uniformity of the grinding pattern. For this reason, we mainly use abrasive fleece with doped and therefore tougher types of corundum. On the one hand, this increases the service life of the polishing tools and, on the other hand, makes the grinding pattern more uniform overall compared to non-doped aluminum oxide.
Protective Equipment when Polishing
When grinding and polishing, the work equipment used creates considerable health risks. It is therefore compulsory to wear suitable personal protective equipment for work safety when grinding and polishing. In particular, all rotating polishing and brushing tools may only be operated with suitable covers for reasons of occupational safety.
Wear eye / face protection
The fine dust emanating from polishing is harmful to the eyes. Flying parts can cause serious injuries to the face and eyes.
Wear respiratory protection
Fine dust contaminated with heavy metals and respirable, which can only be retained with suitable respiratory protection, is produced during polishing.
Wear protective clothing
Flying parts can cause sensitive injuries all over the body.
Wear gloves
In general, gloves should be worn when grinding and polishing. If there is a risk of being wound up (e.g. drills, processing small parts, etc.), gloves may be prohibited on the basis of a risk assessment.
Wear ear protection
Due to the noise exposure during grinding and polishing, it is necessary to wear suitable hearing protection on a regular basis.
"Coarse" AO-003 | Grit 100
Diameter 80 - 200 mm
Bore 12 mm
Packing Unit = 10 pc
