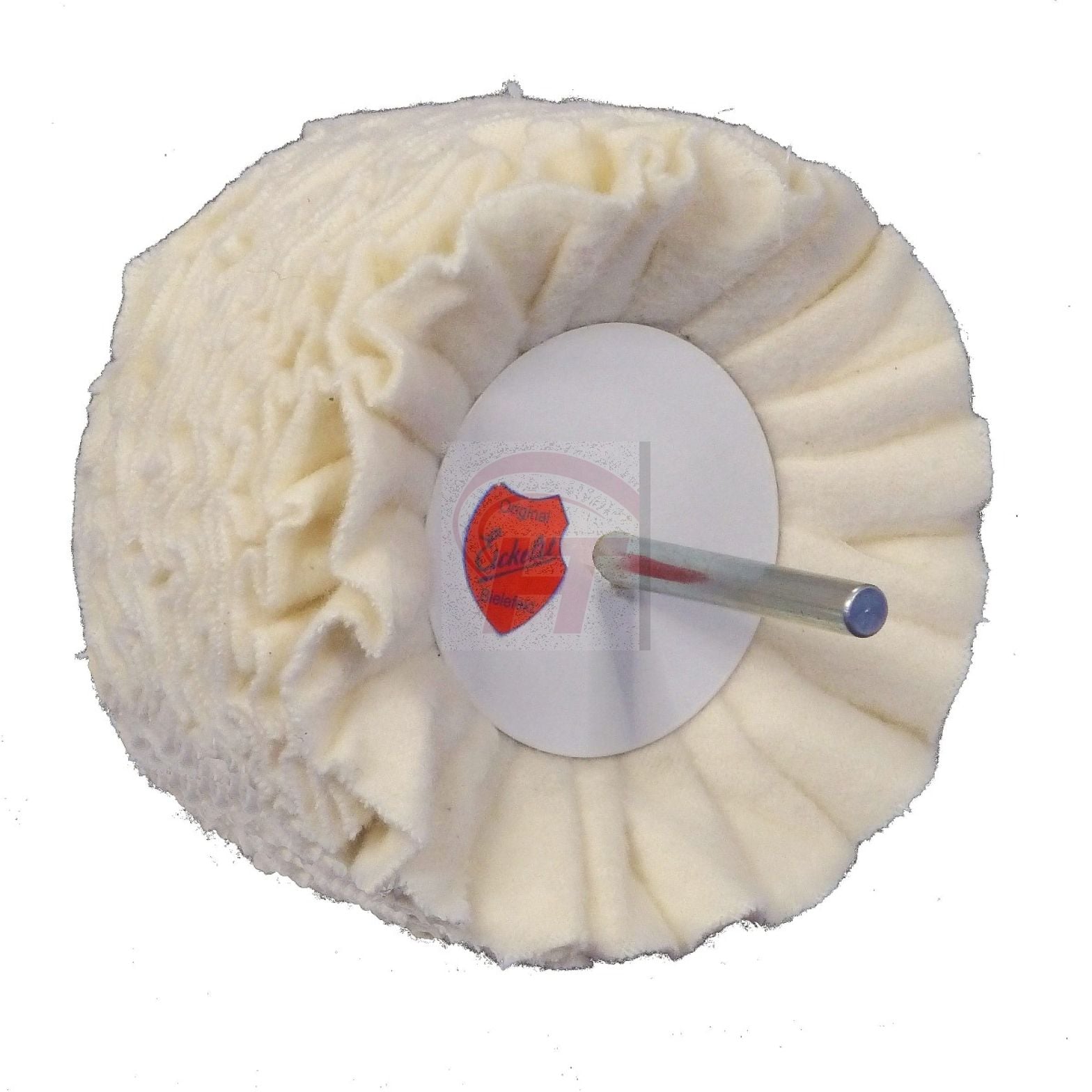

Shank Tool EFFEKTA | Finish Flannel "Soft" | 100 x 30 mm
Material: FM230
Diameter: 100 x 6 mm Shank
Thickness: 30 mm
Shank Tool EFFEKTA "Soft" | 100 x 30 mm
EFFEKTA buffing wheels are high-performance tools for finish-buffing. They are constructed of multiple pleated plies of raw cotton fabric, which ensures a good cooling effect with a very high finish-buffing performance. The soft pleats perfectly adapt to complex surface geometries and provide for random contact patterns. Therefore, EFFEKTA buffing wheels produce particularly uniform surface qualities.
Our shank tools are miniature versions of the tried and tested EICKELIT designs. They complement the buffing process when it comes to the precise cut-buffing and finishing, particularly of surfaces with complex geometries.
PRODUCT FEATURES
- Ventilating shaft tool made of soft Molton FM230
- 12 mirror-inverted layers with very soft EFFEKTA pleating
- Diameter 100 mm, width 30 mm
- Shaft diameter 6 mm, cast with thermosetting synthetic resin compound
- Vmax = 30 m/s, Umax = 5,700 min-1
Molton FM230
FM230 is a fluffy raw cotton molleton fabric that is heavily roughened on both sides and has a specific weight of approx. 190 g/m². Super-finish polishing discs made of FM230 generate little counter-pressure and are used in particular for polishing high-quality and sensitive surfaces due to the particularly gentle attack.
For our professional polishing discs, we only use Oeko-Tex® certified fabrics made from raw cotton from controlled cultivation areas. All of the plain weave cotton cretonnes we use are 100% free of synthetic fibres. For this reason, our polishing discs wear down evenly and are particularly dust-free.
Molleton is a type of fabric made from heavy raw cotton nettle. The roughening weakens the fabric structure in a targeted manner, resulting in a very soft and flexible material with a fine microfiber velor. During napping, the remains of abrasive impurities are brushed out of the raw cotton fabric at the same time. Molleton is therefore particularly suitable for finish polishing discs.
Protective Equipment when Polishing
When grinding and polishing, the work equipment used creates considerable health risks. It is therefore compulsory to wear suitable personal protective equipment for work safety when grinding and polishing. In particular, all rotating polishing and brushing tools may only be operated with suitable covers for reasons of occupational safety.
Wear eye / face protection
The fine dust emanating from polishing is harmful to the eyes. Flying parts can cause serious injuries to the face and eyes.
Wear respiratory protection
Fine dust contaminated with heavy metals and respirable, which can only be retained with suitable respiratory protection, is produced during polishing.
Wear protective clothing
Flying parts can cause sensitive injuries all over the body.
Wear gloves
In general, gloves should be worn when grinding and polishing. If there is a risk of being wound up (e.g. drills, processing small parts, etc.), gloves may be prohibited on the basis of a risk assessment.
Wear ear protection
Due to the noise exposure during grinding and polishing, it is necessary to wear suitable hearing protection on a regular basis.
