Polishing set "complete" aluminium | 6 parts for polishing stand | 200 mm

Aluminium "complete" polishing set for the polishing stand | 200mm

Six-part polishing set for aluminium, especially for the stationary polishing block with flange mount or conical thread. This polishing set reliably delivers the flawless mirror finish that is characteristic of aluminum on carefully ground aluminum surfaces in three coordinated polishing steps.

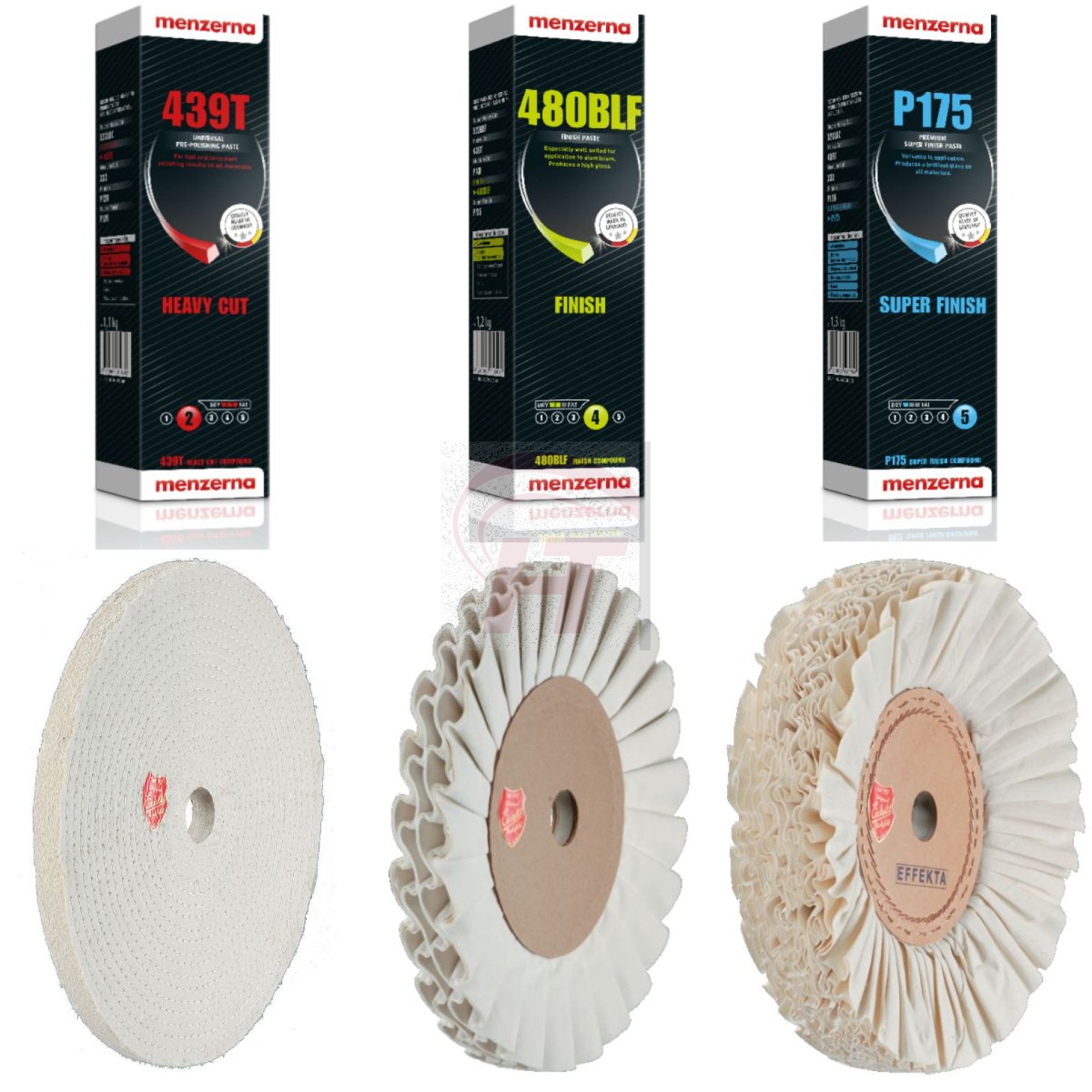

Product features

• Sisal nettle pre-polishing disc SB-VR-10, diameter 200 mm with configurable bore
• V_max = 45 m/s, U_max = 4,300 rpm
• High-gloss polishing wheel Effecta N2550, diameter 200 mm with configurable bore
• Super Finish Effecta FM230 polishing wheel, diameter 200 mm with configurable bore
• V_max = 40 m/s, U_max = 3,800 rpm
• Pre-polishing paste "Heavy Cut" Menzerna 439T (approx. 1.2 kg)
• Aluminium high-gloss polishing paste Menzerna 480BLF (approx. 1, 3 kg)
• Super Finish polishing paste Menzerna P175 (approx. 1 .35 kg)

Application

• Wear protective equipment and follow safety regulations!
• Roughen the polishing discs before use using a suitable dressing tool
• Wet rotating tool sparingly with polishing paste
• Measure the pressure carefully! Too high contact pressure and/or too low speeds lead to overheating of the workpiece with uneven surfaces that can no longer be improved by polishing!

Step 1 - Pre-polishing

• The evenly sanded and cleaned surface crosswise with the SB-VR-10 sisal nettle shaft tool together with Menzerna 439T quickly pre-polish at approx. 35-40 m/s (3,300 - 3,800 rpm) until an even, satin-matt surface without scratches and grooves is achieved on the workpiece
• After polishing, clean the surface of abrasion and paste residues with a dry, soft and lint-free cloth. If necessary, degrease the workpiece with a suitable solvent or Viennese lime

Step 2 - High Gloss

• The evenly pre-polished and cleaned surface in cross passes with a shank tool Effekta N2550 together with Menzerna 480BLF at approx. 30-35 m/s (2,850 - 3,300 rpm) quickly polish to a high gloss
• After polishing, clean the surface with a dry, soft, lint-free cloth. If necessary, degrease the workpiece with a suitable solvent or Viennese lime

Step 3 - Superfinish

• The clean, high-gloss polished surface is achieved with the Effecta FM230 Super Finish polishing disc and Menzerna P175 at approx. 30-35 m/s (2,850 - 3,300 rpm) quickly in cross passes until the desired mirror finish is achieved
• The Super Finish Paste P175 only leaves an invisible microfilm on the flawless surface. To protect this surface, one usually avoids mechanical cleaning after superfinishing
