Polishing set Aluminium "complete" | 6 parts for drill | 80 mm
80 mm | 6 mm shank | Aluminium
Contents: polishing discs | compounds
cut-buffing | high-gloss | super-finish
Aluminium "complete" polishing set for drills | 80mm
With the six-part drill complete polishing set for aluminum, even hard-to-reach, finely ground aluminum components can be refined to a super finish. The surface treatment takes place in three steps: pre-polishing, main polishing and super finish. With this complete polishing set, you can reliably achieve the flawless mirror finish that is characteristic of aluminum on carefully ground aluminum surfaces.
Product features

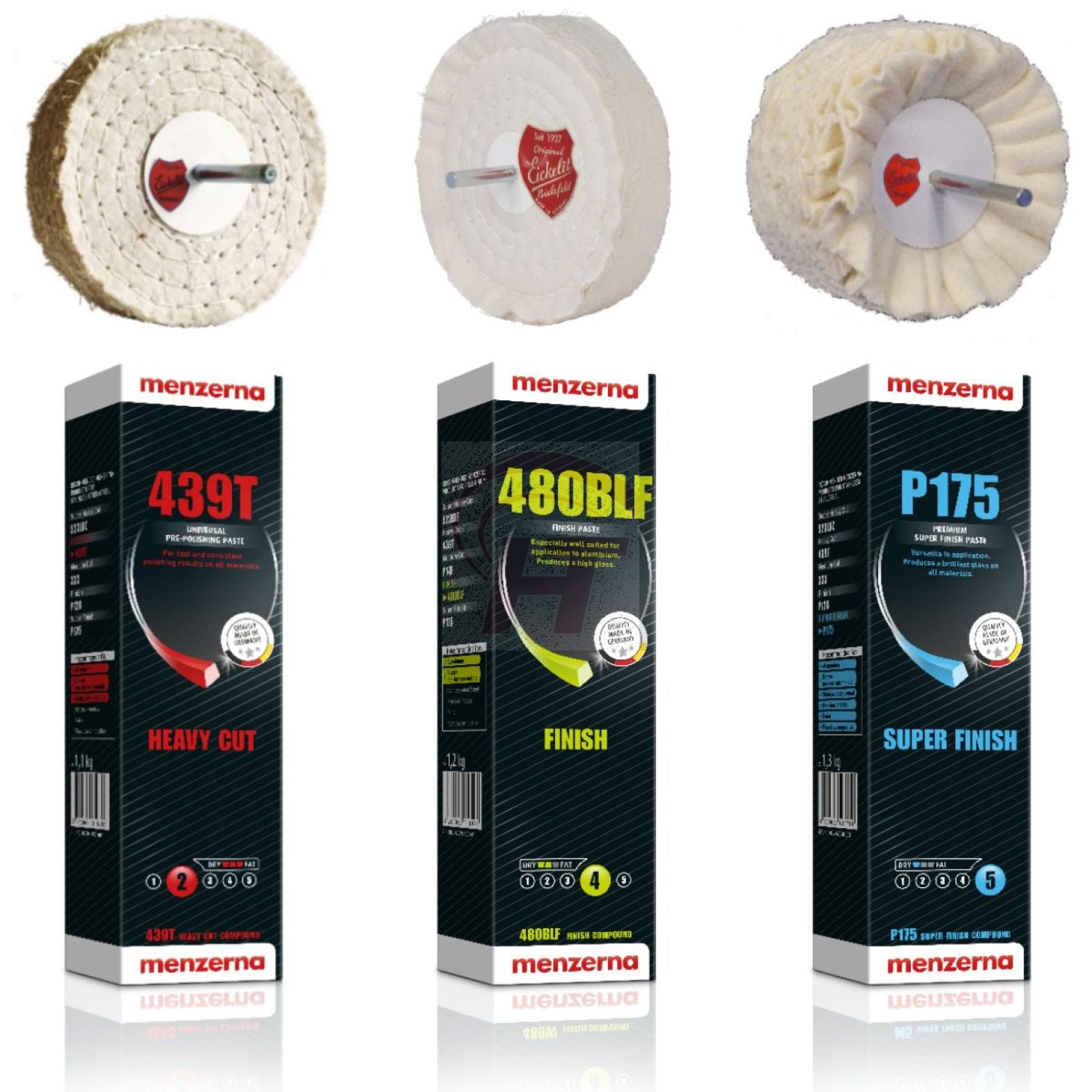

- SB-VR-10 shank tool, 80 x 6 mm
- Effecta N2550 shank tool, 80 x 6 mm
- Effecta FM230 shank tool, 80 x 6 mm
- Vmax = 30 m/s, Umax = 7,200 rpm
- Pre-polishing paste "Heavy Cut" Menzerna 439T (approx. 1.2 kg)
- Aluminium high-gloss polishing paste Menzerna 480BLF (approx. 1, 3 kg)
- Super Finish polishing paste Menzerna P175 (approx. 1 .35 kg)
Application
- Wear protective equipment and follow safety regulations!
- Roughen the polishing discs before use using a suitable dressing tool
- Wet rotating tool sparingly with polishing paste
Step 1
- The evenly sanded and cleaned surface crosswise with the SB-VR-10 sisal nettle shaft tool together with Menzerna 439T quickly pre-polish at approx. 25-30 m/s (6,000 - 7,200 rpm) until the workpiece has an even, satin-matt surface without scratches or grooves
- After polishing, clean the surface of abrasion and paste residues with a dry, soft and lint-free cloth. If necessary, degrease the workpiece with a suitable solvent or Viennese lime
Step 2
- The evenly pre-polished and cleaned surface in cross passes with a shank tool Effekta N2550 together with Menzerna 480BLF at approx. 25-30 m/s (6,000 - 7,200 rpm) quickly polish to a high gloss
- After polishing, clean the surface with a dry, soft, lint-free cloth. If necessary, degrease the workpiece with a suitable solvent or Viennese lime
Step 3
- The clean, mirror-polished surface using the Effekta FM230 shank tool and Polish the Menzerna P175 at approx. 25-30 m/s (6,000 - 7,200 rpm) quickly in cross passes to a super finish
- The Super Finish Paste P175 only leaves an invisible microfilm on the flawless surface. To protect this surface, mechanical cleaning after superfinishing is usually avoided
Protective Equipment when Polishing
When grinding and polishing, the work equipment used creates considerable health risks. It is therefore compulsory to wear suitable personal protective equipment for work safety when grinding and polishing. In particular, all rotating polishing and brushing tools may only be operated with suitable covers for reasons of occupational safety.
Wear eye / face protection
The fine dust emanating from polishing is harmful to the eyes. Flying parts can cause serious injuries to the face and eyes.
Wear respiratory protection
Fine dust contaminated with heavy metals and respirable, which can only be retained with suitable respiratory protection, is produced during polishing.
Wear protective clothing
Flying parts can cause sensitive injuries all over the body.
Wear gloves
In general, gloves should be worn when grinding and polishing. If there is a risk of being wound up (e.g. drills, processing small parts, etc.), gloves may be prohibited on the basis of a risk assessment.
Wear ear protection
Due to the noise exposure during grinding and polishing, it is necessary to wear suitable hearing protection on a regular basis.
