Filament Deburring Brush | AO-003 "Coarse" | 200-400 mm

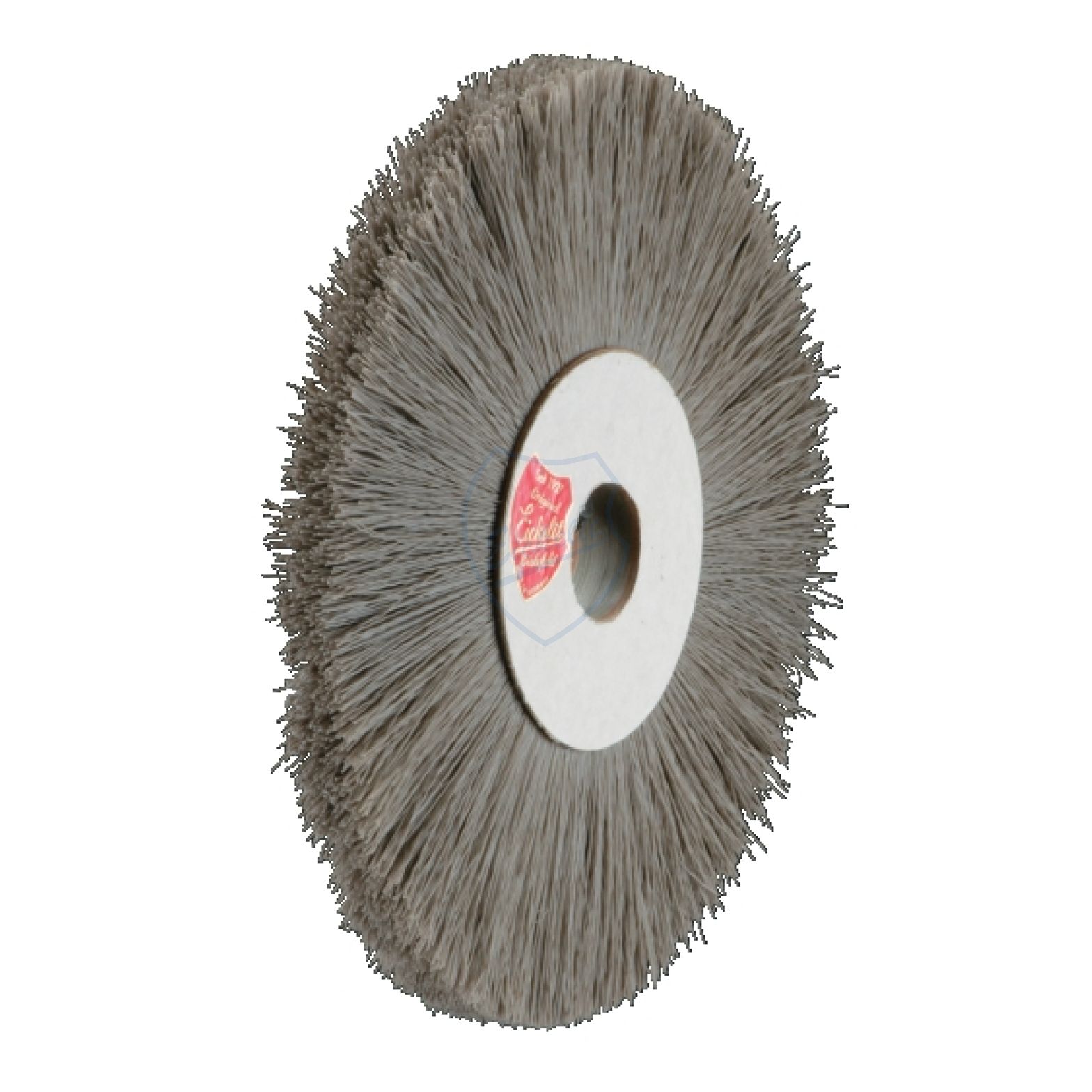

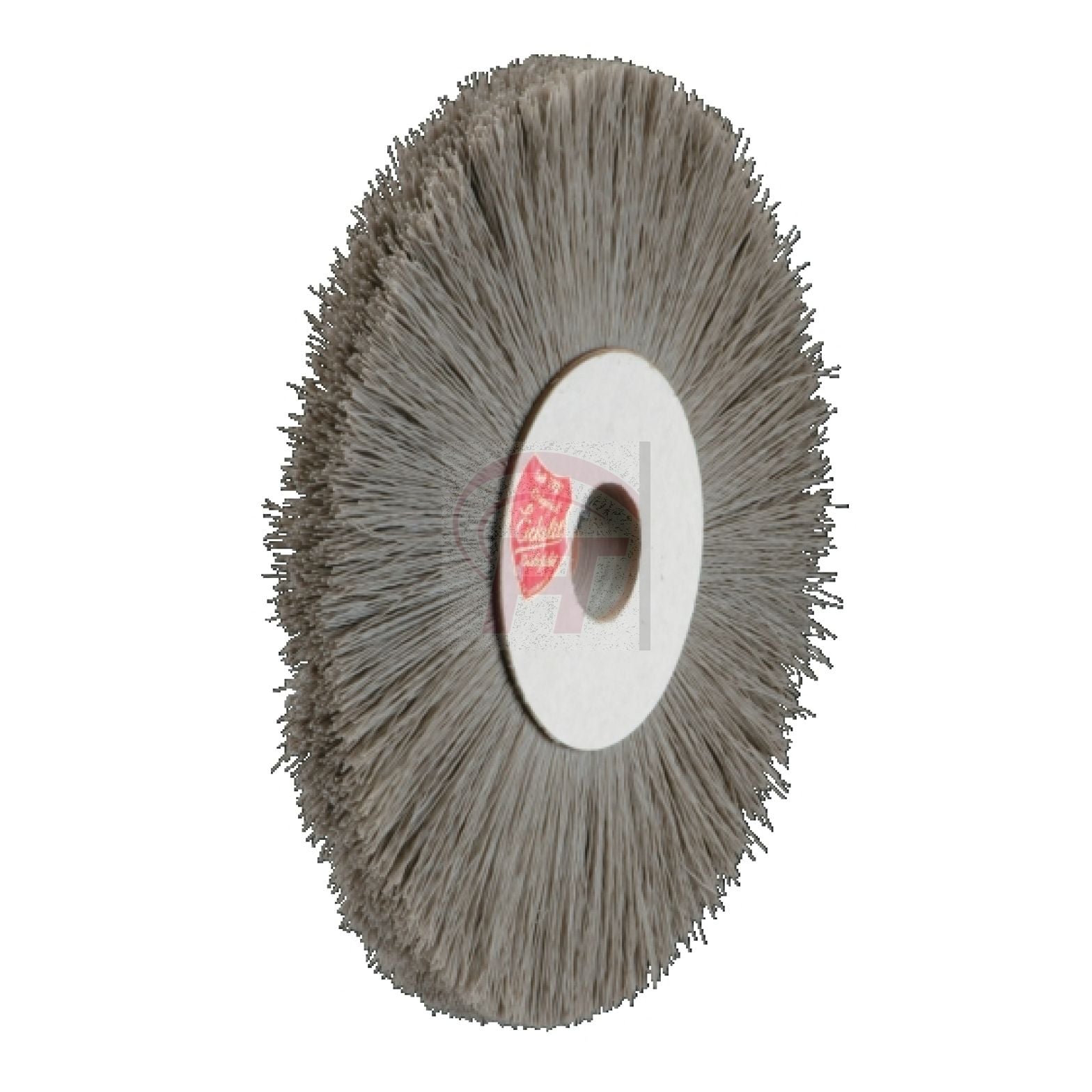

Filament Deburring Brush HERKULES

HERKULES abrasive brushes consist of flexible nylon abrasive filaments with embedded silicon carbide or aluminum oxide abrasive crystallites. HERKLUES abrasive brushes are used for a wide variety of materials for deburring, matting, structuring and cleaning. When deburring in particular, abrasive filament brushes have the advantage over conventional metal wire brushes that they grind off the secondary burrs instead of shearing them off. Therefore, deburring with HERKULES brushes provide damage-free contours as required in the manufacture of precise engine and transmission components.

Product Features

• Nylon abrasive filaments casted with a thermoset compound onto a cardboard core
• Incorporated abrasives of SiC or AlOx, grit 80 - 320
• Individually calibrated for vibration-free concentricity
• Diameter 200 to 400 mm
• Witdth 10 to 60 mm
• Freely selectable bore holes 17 - 60 mm

Abrasive Filaments

The filaments of our HERKULES abrasive brushes are made of particularly resistant polyamide 6.12, in which the silicon carbide or aluminum oxide abrasive is embedded. PA 6.12 has high wear and impact resistance, good recovery capacity after bending and is very resistant to oils, greases, aliphatic hydrocarbons and alkalis. PA 6.12 is therefore particularly suitable for use in grinding brushes. For gentle surface treatment, the filaments are extruded in a wave shape.

Abrasive filament AO-003

• Wavy filament made of technically high-quality carrier material PA 6.12
• Grit 120 aluminum oxide abrasive
• Thickness: 1.1 mm

Dimensions

•
• * Observe safety regulations for the minimum diameter of drive shafts!
