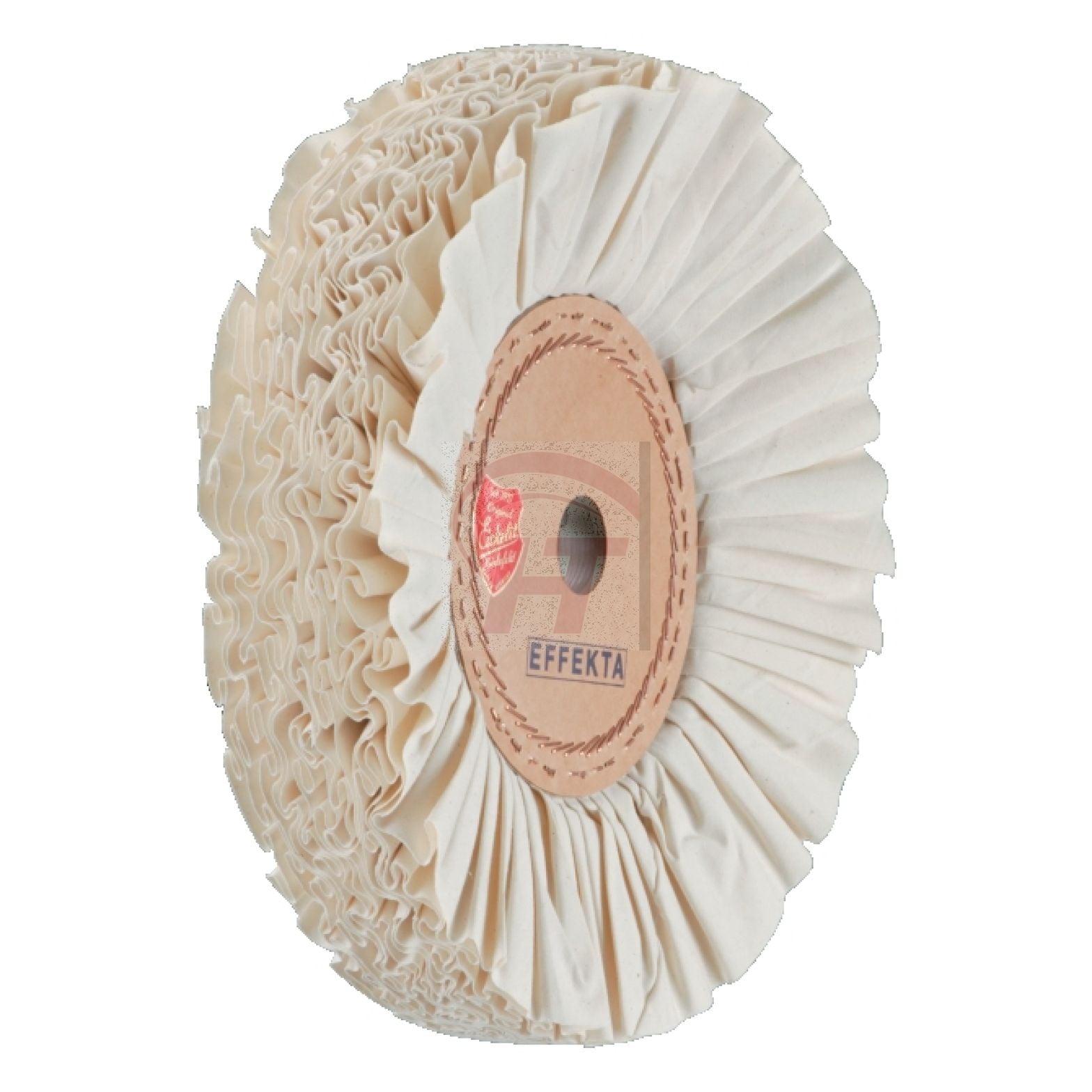

main product photo

Super-Finish Buffing Wheel EFFEKTA | Flannel "Extra Soft" | 400 mm

Material: FM209

12 Pleated Layers / 100 % Seamless

Diameter: 400 mm

Weight: kg
€95.70
Incl. VAT (Total price depending on the VAT rate of the country of delivery), excl. Shipping Cost
  • Buy 3 for €92.83 each and save 3%
  • Buy 5 for €89.00 each and save 7%
  • Buy 10 for €84.22 each and save 12%
Availability
2-3 Days *
Copy Product Link
Item No.
082-FM209-400

For finish-buffing of particularly sensitive high-gloss surfaces, we manufacture our EFFEKTA polishing discs with high-quality molton trimmings exclusively in 100% seams-free quality.

PRODUCT FEATURES

  • Super-finish buffing wheel made of extra soft raw cotton Molton for the stationary polishing stand
  • 24 pleated layers in a mirror-inverted arrangement
  • Micro-scratch-free high gloss due to 100% seamless construction
  • Diameter 400 mm, thickness at the hole approx. 22 mm
  • Selectable mounting holes from 35 - 65 mm
  • Individually calibrated for low-vibration work
  • Optionally pre-roughened ready for use on request
  • V max = 40 m / s, U max = 1,900 min -1

Cotton Quality

For our professional polishing discs, we only use Oeko-Tex® certified fabrics made from raw cotton from controlled cultivation areas. All our cotton cretonnes in plain weave are 100% free from synthetic fibers. For this reason, our polishing discs wear out evenly and are particularly low in dust.

Please follow our link for more information on our cotton fabrics.

Flannel FM209

Flannel (also called Molleton) is a type of fabric that is made from heavy raw cotton nettle. Through roughening, the fabric structure is specifically weakened, creating a very soft and flexible material with a fine microfiber velor. At the same time, remnants of the abrasive natural impurities are brushed from the raw cotton fabric.

FM209 is an intensely roughed and thus very soft and fluffy flannel made from a very dense and heavy raw cotton fabric. Buffing discs made from FM209 generate almost no counter pressure. Due to its particularly gentle attack, FM209 is therefore especially suitable for finish-buffing of very sensitive high-end surfaces.

Bore Holes

  • We manufacture your desired bore individually for you. We cover every known bore diameter for industrial polishing machines *
  • If you need other bore diameters or special adapters (e.g. for hexagonal shafts, with keyways, etc.), we will be happy to manufacture them on request **

* Polishing discs drilled individually at the customer's request are excluded from exchange or return in accordance with our Terms of Cancellation.

** Observe safety regulations for the minimum diameter of drive shafts!

Areas of Application

  • EFFEKTA high-performance buffing wheels with extra soft pleats are particularly suitable for high-end finishing of complex surface geometries of sensitive painted surfaces, including non-ferrous metals and stainless steel.
  • The very soft, single-layer folds adapt flexibly to any surface geometry, allowing to deeply immerse the workpieces into the disc. Even with extended contact zones, thanks to the EFFEKTA pleats a performant airstream and thus very effective cooling is ensured.
  • EFFEKTA buffing wheels offer a particularly even high gloss, especially in combination with our 100% seams-free technology.

Heat Development of EFFEKTA Buffing Wheels

  • Due to their large contact surface, EFFEKTA buffing wheels develop significant frictional heat. With its powerful air flow, EFFEKTA can efficiently remove this excess heat from the work piece
  • Materials with low thermal conductivity (e.g. plastics, wood, etc.) tend to quickly overheat. This can be avoided by carefully dosing the immersion depth and polishing time

Trimming Cotton Buffing Wheels

  • Careful preparation of the buffing / polishing tool is a prerequisite for an optimal surface result. Please follow our recommendations for trimming cotton buffing wheels
  • Used buffing discs should also be dressed again on a regular basis. This is especially true if residues of polishing paste have solidified on the working surface or the buffing wheels are heavily contaminated with material abrasion

General Information on Polishing

Protective Equipment when Polishing

When grinding and polishing, the work equipment used creates considerable health risks. It is therefore compulsory to wear suitable personal protective equipment for work safety when grinding and polishing. In particular, all rotating polishing and brushing tools may only be operated with suitable covers for reasons of occupational safety.

ISO 7010 M013 Wear eye / face protection

Wear eye / face protection

The fine dust emanating from polishing is harmful to the eyes. Flying parts can cause serious injuries to the face and eyes.

ISO 7010 M017 Wear respiratory protection

Wear respiratory protection

Fine dust contaminated with heavy metals and respirable, which can only be retained with suitable respiratory protection, is produced during polishing.

ISO 7010 M010 Wear protective clothing

Wear protective clothing

Flying parts can cause sensitive injuries all over the body.

ISO 7010 M009 Wear gloves

Wear gloves

In general, gloves should be worn when grinding and polishing. If there is a risk of being wound up (e.g. drills, processing small parts, etc.), gloves may be prohibited on the basis of a risk assessment.

ISO 7010 M003 Wear ear protection

Wear ear protection

Due to the noise exposure during grinding and polishing, it is necessary to wear suitable hearing protection on a regular basis.
