Polishing Set Steel "complete" | 8 parts for drill | 80 mm
80 mm | 6 mm shank | Stainless Steel

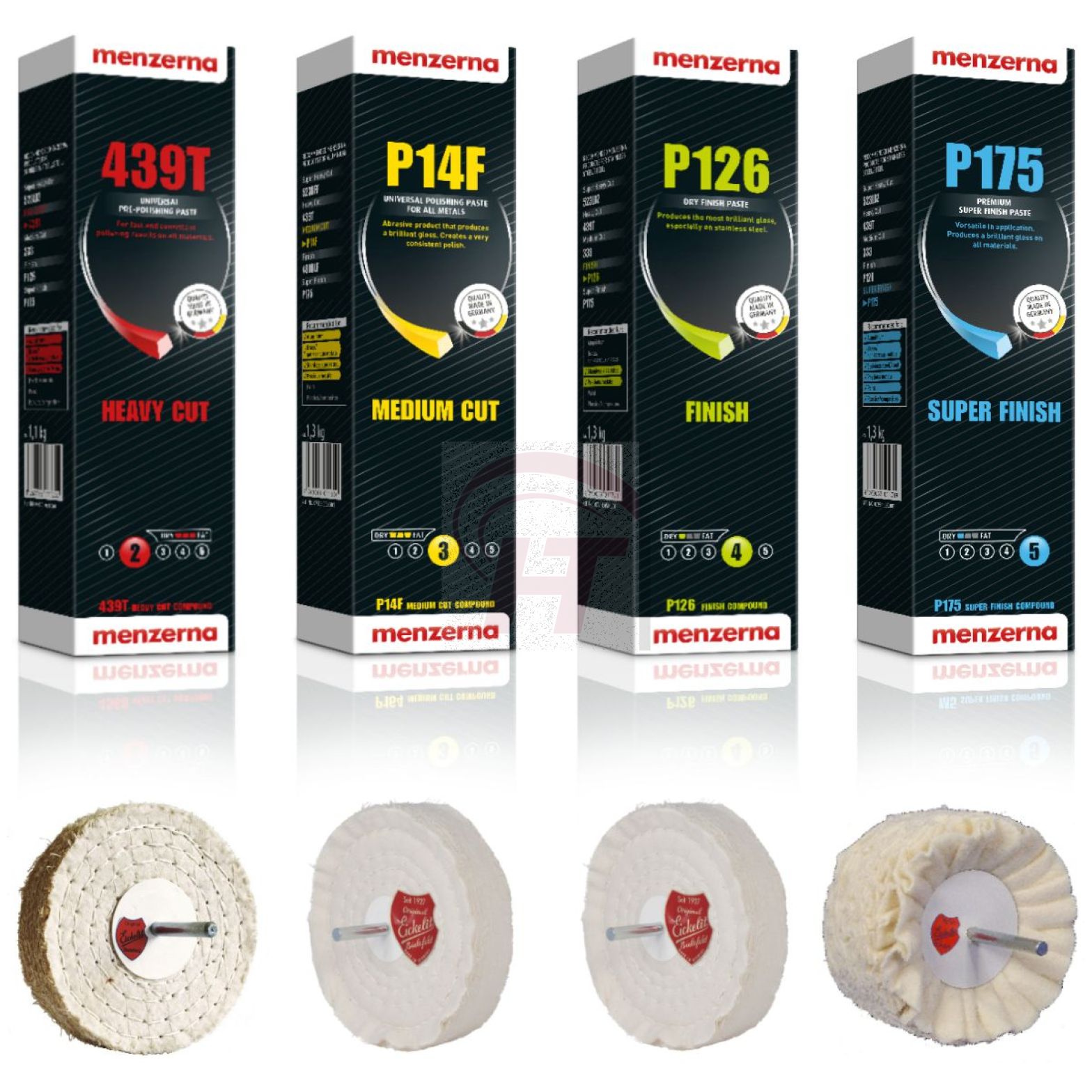

Contents: polishing discs | compounds
cutting | polishing | colouring | super-finish
Stainless steel "super finish" polishing set for drills | 80mm
With the eight-part drill super-finish-polishing set for stainless steel, even hard-to-reach, finely ground INOX components can be refined to a super finish. The surface treatment takes place in four steps: pre-polishing, main polishing, high gloss finish and super finish. With this super-finish-polishing set, you can reliably achieve the flawless and bluish mirror finish that is characteristic of stainless steel on carefully ground INOX surfaces.
Product features
- SB-VR-10 shank tool, 80 x 6 mm
- N2550 shank tool, 80 x 6 mm
- N16 shank tool, 80 x 6 mm
- Effekta FM230 shank tool, 80 x 6 mm
- Vmax = 30 m/s, Umax = 7,200 rpm
- Pre-polishing paste "Heavy Cut" Menzerna 439T (approx. 1.2 kg)
- Stainless steel medium-cut poishing compound Menzerna P14F (approx. 1, 3 kg)
- Menzerna P126 INOX high gloss compound
- Super Finish polishing paste Menzerna P175 (approx. 1 .35 kg)
Application
- Wear protective equipment and follow safety regulations!
- Roughen the polishing discs before use using a suitable dressing tool
- Wet rotating tool sparingly with polishing paste
Step 1
- The evenly sanded and cleaned surface crosswise with the SB-VR-10 sisal nettle shaft tool together with Menzerna 439T quickly pre-polish at approx. 25-30 m/s (6,000 - 7,200 rpm) until the workpiece has an even, satin-matt surface without scratches or grooves
- After polishing, clean the surface of abrasion and paste residues with a dry, soft and lint-free cloth. If necessary, degrease the workpiece with a suitable solvent or Viennese lime
Step 2
- The evenly pre-polished and cleaned surface in cross passes with a shank tool Effekta N2550 together with Menzerna P14F at approx. 25-30 m/s (6,000 - 7,200 rpm) quickly polish to a high gloss
- After polishing, clean the surface with a dry, soft, lint-free cloth. If necessary, degrease the workpiece with a suitable solvent or Viennese lime
Step 3
- Polish the clean, glossy surface using the N16 buffing shank tool and Menzerna P126 INOX high gloss compound at approx. 25-30 m/s (6,000 - 7,200 rpm) quickly and in cross passes to a fine high gloss finish
Step 4
- Buff the clean, mirror-polished surface using the Effekta FM230 shank tool and Menzerna P175 at approx. 25-30 m/s (6,000 - 7,200 rpm) in quick cross passes to a perfect super finish
- The Super Finish Paste P175 only leaves an invisible microfilm on the flawless surface. To protect this surface, mechanical cleaning after superfinishing is usually avoided
Protective Equipment when Polishing
When grinding and polishing, the work equipment used creates considerable health risks. It is therefore compulsory to wear suitable personal protective equipment for work safety when grinding and polishing. In particular, all rotating polishing and brushing tools may only be operated with suitable covers for reasons of occupational safety.
Wear eye / face protection
The fine dust emanating from polishing is harmful to the eyes. Flying parts can cause serious injuries to the face and eyes.
Wear respiratory protection
Fine dust contaminated with heavy metals and respirable, which can only be retained with suitable respiratory protection, is produced during polishing.
Wear protective clothing
Flying parts can cause sensitive injuries all over the body.
Wear gloves
In general, gloves should be worn when grinding and polishing. If there is a risk of being wound up (e.g. drills, processing small parts, etc.), gloves may be prohibited on the basis of a risk assessment.
Wear ear protection
Due to the noise exposure during grinding and polishing, it is necessary to wear suitable hearing protection on a regular basis.
