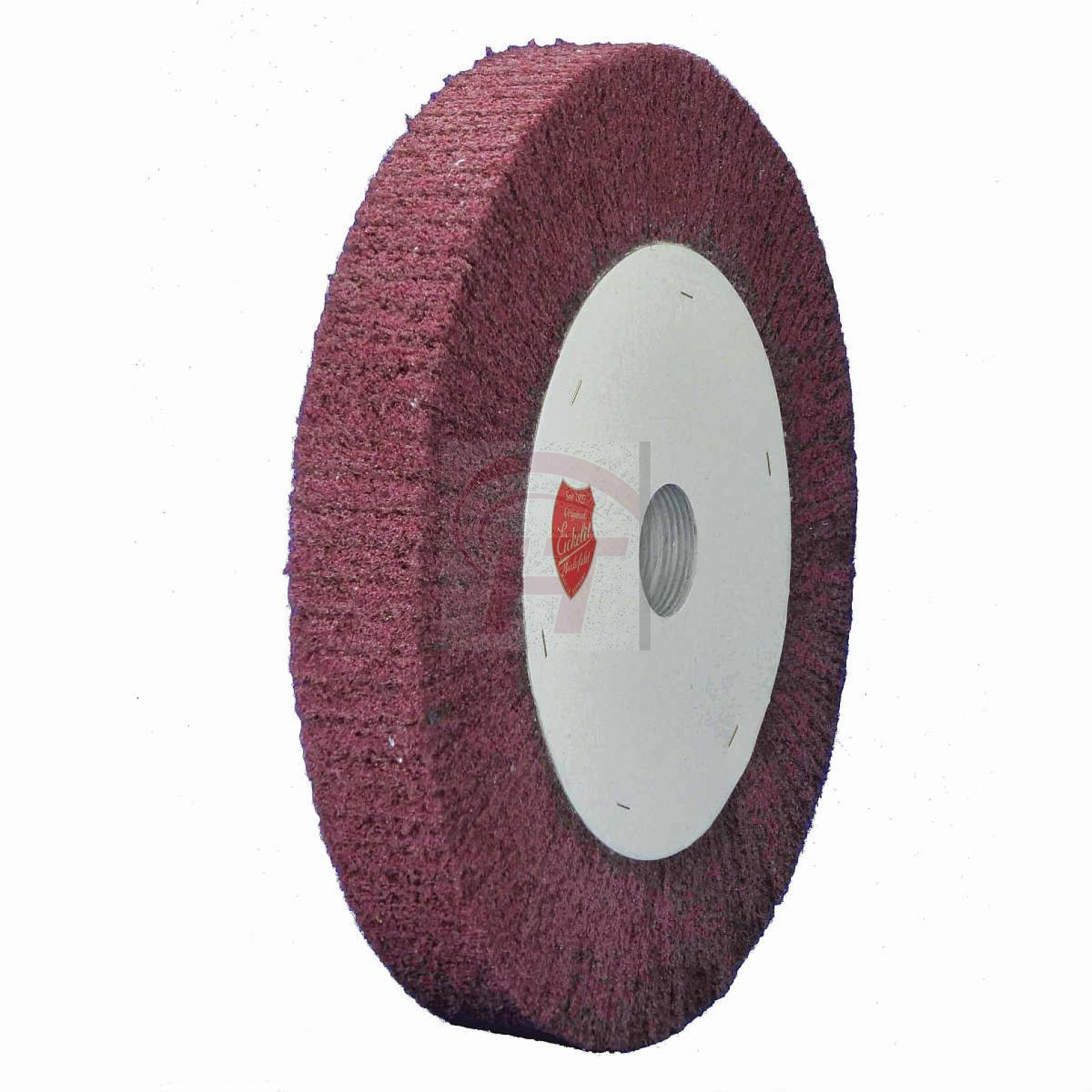

Abrasive Flap Wheel | Heavy-Duty | Grit 240 "fine" | 200 x 35 mm


AlOx / "Fine" / AO-006-HDI

200 x 35 mm

Heavy-Duty Material

Hardness H5 Firm

Weight: kg
Incl. VAT (Total price depending on the VAT rate of the country of delivery), excl. Shipping Cost
  • Buy 5 for €48.50 each and save 3%
  • Buy 10 for €46.50 each and save 7%
  • Buy 20 for €42.50 each and save 15%
2-3 Days *
Item No.

Abrasive Non-Woven Flap Wheels

EICKELIT flap wheels are constructed from a large number of single flaps of a nylon nonwoven with firmly bonded abrasives. They are suitable for cleaning, fine grinding, satin and matt finishing of non-ferrous metals and steels as well as a wide variety of other fields of application. We offer a large standard range of abrasive fleece types based on aluminum oxide or silicon carbide with different strengths and grain sizes to optimize desired results according to our customers' individual specifications.


  • AO-006-HDI has a solid structure, the grain size corresponds to approximately Grit 240 for a fine grinding result
  • Particularly reinforced abrasive fleece for heavy-duty applications
  • Disc diameter approx. 200 mm, tool thickness approx. 35 mm
  • Strength of the slat trim: Hardness 5 = solid
  • Core made of high-quality gray cardboard
  • Core and trim cast with thermoset synthetic resin
  • Configurable holes 14 - 65 mm
  • Vmax = 25 m/s, Umax = 2,400 min-1

Abrasive Nonwovens

  • In the manufacture of abrasive nonwovens, abrasives such as silicon carbide or aluminum oxide are firmly bonded to a nylon nonwoven by synthetic resins. Consequently, the strength and cooling effect of the abrasive fleece depends largely on the fiber strength, the fleece density and the physico-chemical properties of the binders in use
  • Due to its open structure, abrasive nonwovens are self-cleaning and therefore do not clog during polishing. In addition, the chemical and physical resistance of the synthetic fiber composite also allows wet use together with aqueous or oily media
  • Due to the flexibility of the nonwoen, even complex profiles and geometries can be efficiently processed, providing gentle material removal
  • Because of the constant wear and tear of the backing material, fresh abrasives are constantly released in uniform concentrations on the tool's surface. This is why polishing tools made of nonwovens are particularly low-maintenance and thus provide a very uniform finish over their entire service life
  • Please follow the link for further information on our range of available abrasive fleece variants

Corundum / Aluminum Oxide (AO)

Corundum consists of> 95% aluminum oxide and is the most frequently used grinding tool on bonded abrasives. However, as the degree of purity increases, the hardness and brittleness of corundum increase, which has a rather negative effect on the longevity of the abrasive grain and thus the uniformity of the grinding pattern. That is why we mainly use abrasive fleeces with doped and consequently more ductile types of corundum. On the one hand, this increases the service life of the polishing tools and, on the other hand, the grinding pattern looks more balanced compared to undoped aluminum oxide.


  • The aluminum oxide abrasive in AO-006 corresponds to a grain size of approx. Grit 240 and provides a fine grinding pattern
  • The abrasive fleece AO-006 has a medium-strength texture

Bore Holes

  • We manufacture your desired bore individually for you. We cover every known bore diameter for industrial polishing machines *
  • If you need other bore diameters or special adapters (e.g. for hexagonal shafts, with keyways, etc.), we will be happy to manufacture them on request **

* Polishing discs drilled individually at the customer's request are excluded from exchange or return in accordance with our Terms of Cancellation.

** Observe safety regulations for the minimum diameter of drive shafts!
