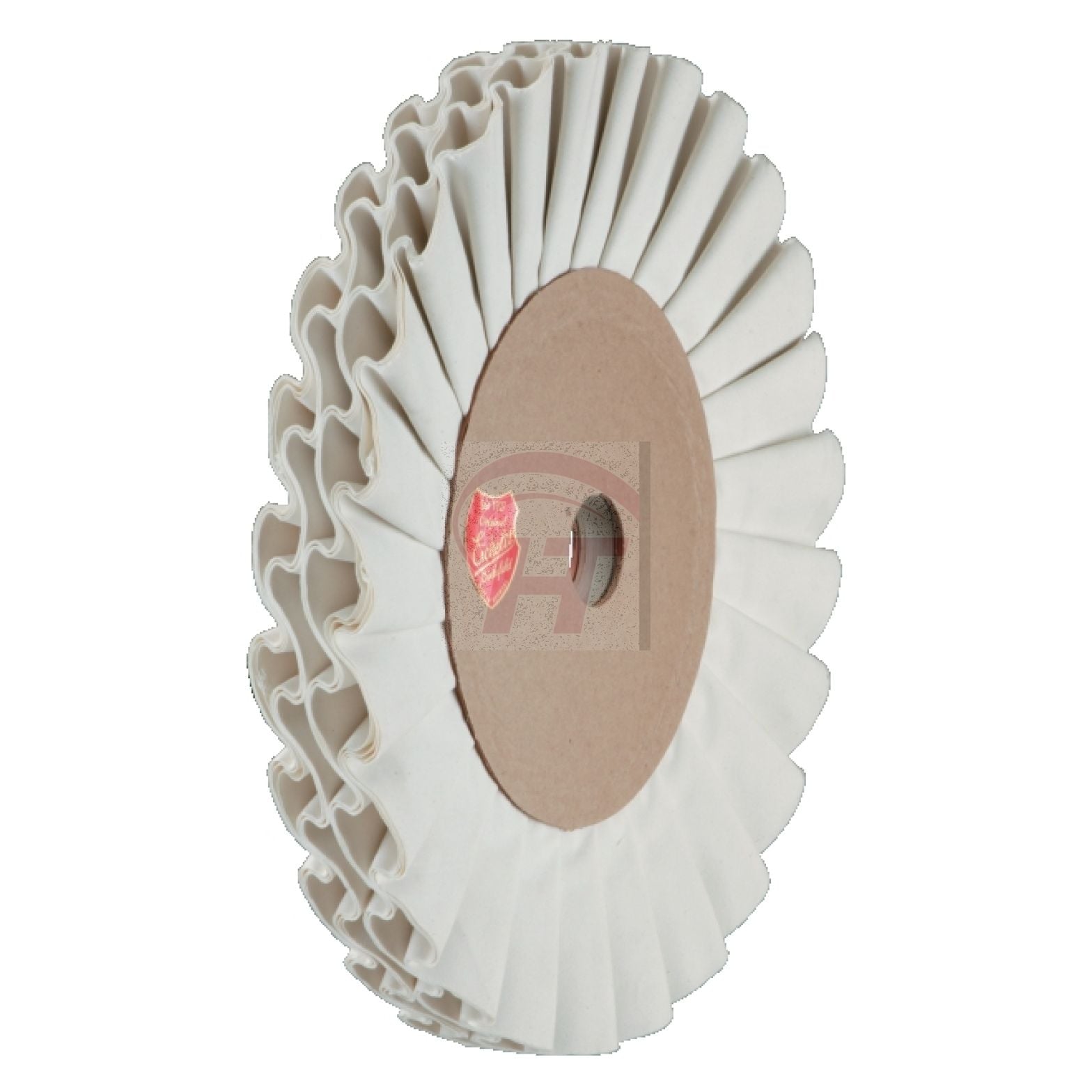

Buffing Wheel KONSTANT | Cotton "Firm" | 150 mm

Material: N2550

4 x 4 Plies

Diameter: 150 mm

Weight: kg
€26.50
Incl. VAT (Total price depending on the VAT rate of the country of delivery), excl. Shipping Cost
  • Buy 3 for €25.71 each and save 3%
  • Buy 5 for €24.65 each and save 7%
  • Buy 10 for €23.32 each and save 12%
Availability
2-3 Days *
Item No.
072-N2550-150

PRODUCT DESCRIPTION KONSTANT 4-4 / diameter 150 mm

EICKELIT KONSTANT 4-4 polishing rings are mainly employed for the primary buffing of non-ferrous metals and stainless steel. A quartet of multiple layers of unbleached cotton cloth, wound in a helical fashion around a cardboard centre, permits medium to strong contact pressure. Simultaneously, the pleated folds on the KONSTANT 4-4 polishing discs guarantee effective cooling of workpiece surfaces at high production speeds.

PRODUCT FEATURES

  • Polishing ring made of 4 pleated layers of strong raw cotton fabric N2550
  • Medium contact pressure for pre- and main polishing of non-ferrous metals and stainless steel
  • Adapts to complex surface geometries
  • Exhibits strong cooling effect
  • Diameter 150 mm / core thickness approx. 22 mm
  • Configurable bore 10 - 60 mm
  • Calibrated for vibration-free concentricity
  • If desired, roughened for immediate use
  • Vmax = 40 m/s, Umax = 5,100 min-1

COTTON QUALITY

N2550 is a strong raw cotton fabric with a specific weight of approx. 230 g/m², which is particularly suitable for the pre- and main polishing of non-ferrous metals and stainless steel. Please follow our link for more information on our continuously available cotton fabric types.

Bore Holes

  • We manufacture your desired bore individually for you. We cover every known bore diameter for industrial polishing machines *
  • If you need other bore diameters or special adapters (e.g. for hexagonal shafts, with keyways, etc.), we will be happy to manufacture them on request **

* Polishing discs drilled individually at the customer's request are excluded from exchange or return in accordance with our Terms of Cancellation.

** Observe safety regulations for the minimum diameter of drive shafts!

Areas of application KONSTANT Polishing Discs

KONSTANT polishing discs are used in particular for pre- and main polishing. Due to our extensive range of cotton fabrics, KONSTANT polishing discs are suitable for the high-gloss finish of sensitive paint surfaces, including non-ferrous metals and stainless steel.

KONSTANT polishing discs provide solid counter-pressure because they are significantly stronger than EFFEKTA polishing discs, but are softer than quilted polishing disks made of fully rounded cotton sheets.

Due to their folding, KONSTANT polishing tools generate a strong air flow and have a cooling effect. KONSTANT polishing wheels are characterized in particular by their homogeneous polishing pattern on surfaces and shaped workpieces.

General Information on Polishing

Trimming Cotton Buffing Wheels

  • Careful preparation of the buffing / polishing tool is a prerequisite for an optimal surface result. Please follow our recommendations for trimming cotton buffing wheels
  • Used buffing discs should also be dressed again on a regular basis. This is especially true if residues of polishing paste have solidified on the working surface or the buffing wheels are heavily contaminated with material abrasion
