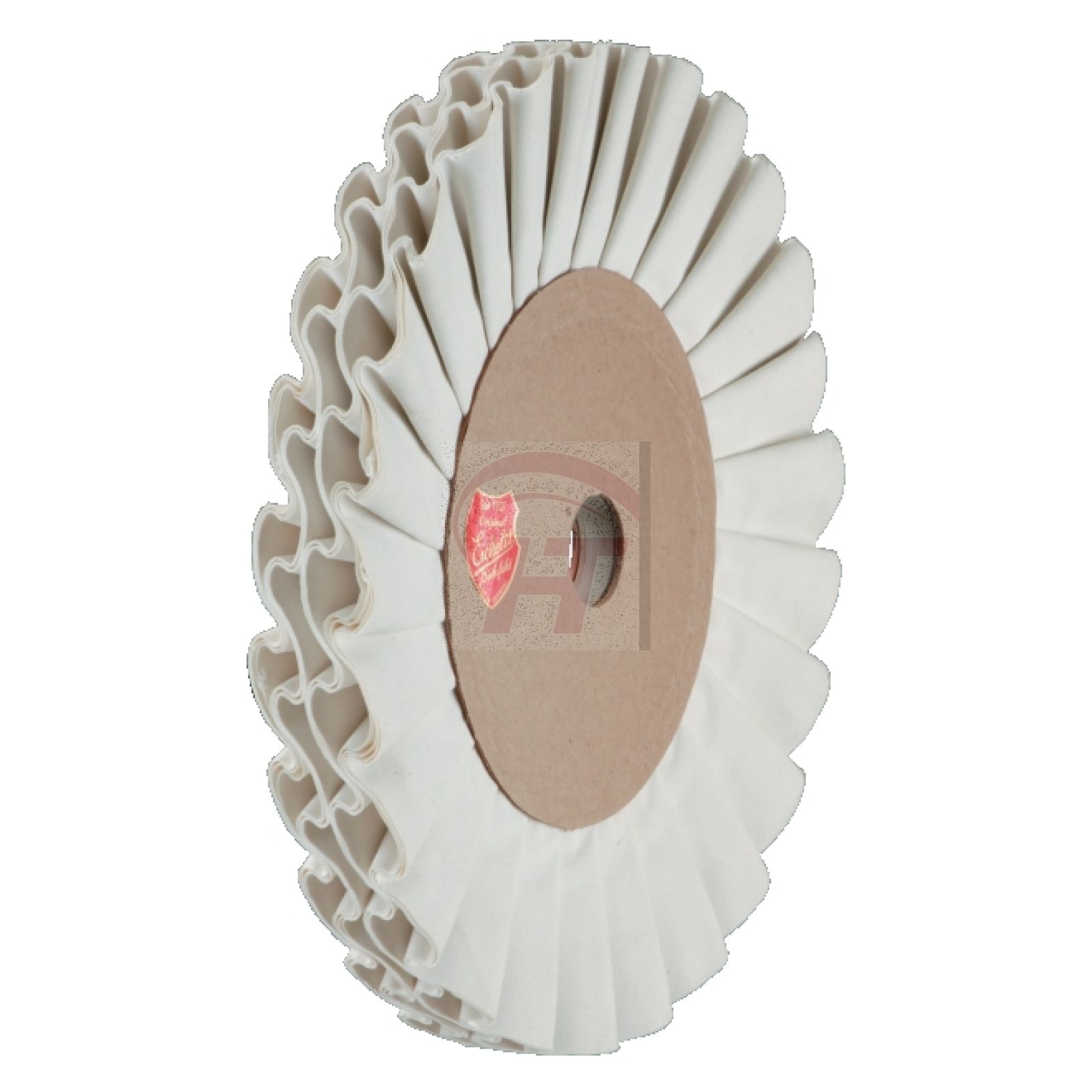

KONSTANT 4-4 are high-efficiency buffing tools that are particularly suitable for the buffing and finish of non-ferrous metals and stainless steel. 4 x 4 plies of raw cotton fabric, twisted diagonally against its weaving direction, are arranged in a spiral around a cardboard core and thus provide a solid contact pressure. The pleated folds of the KONSTANT 4-4 polishing discs ensure effective cooling of the work pieces even at high performance levels.
Product Features
Buffing wheel made of 4 x 4 pleated plies of raw cotton fabric with 45° biased weave
Medium to solid contact pressure for effective cut-buffing and fine-buffing on non-ferrous metal and stainless steel
Adapts flexible to complex surface geometries
Diameter 150 - 600 mm
Configurable bore holes 10 - 60 mm
Calibrated for low-vibration concentricity
Optionally roughened ready for use
Raw Cotton Fabric N16
N16 is a light raw cotton plain weave fabric with a specific weight of approx. 190 g / m². Depending on the construction of the buffing tool, N16 is particularly suitable for buffin of non-ferrous metals, plastics and paints.
Dimensions
* Observe the safety regulations for the minimum diameter of drive shafts!
Bore Holes
We manufacture your desired bore individually for you. We cover every known bore diameter for industrial polishing machines *
If you need other bore diameters or special adapters (e.g. for hexagonal shafts, with keyways, etc.), we will be happy to manufacture them on request **
* Polishing discs drilled individually at the customer's request are excluded from exchange or return in accordance with our Terms of Cancellation.
Careful preparation of the buffing / polishing tool is a prerequisite for an optimal surface result. Please follow our recommendations for trimming cotton buffing wheels
Used buffing discs should also be dressed again on a regular basis. This is especially true if residues of polishing paste have solidified on the working surface or the buffing wheels are heavily contaminated with material abrasion
