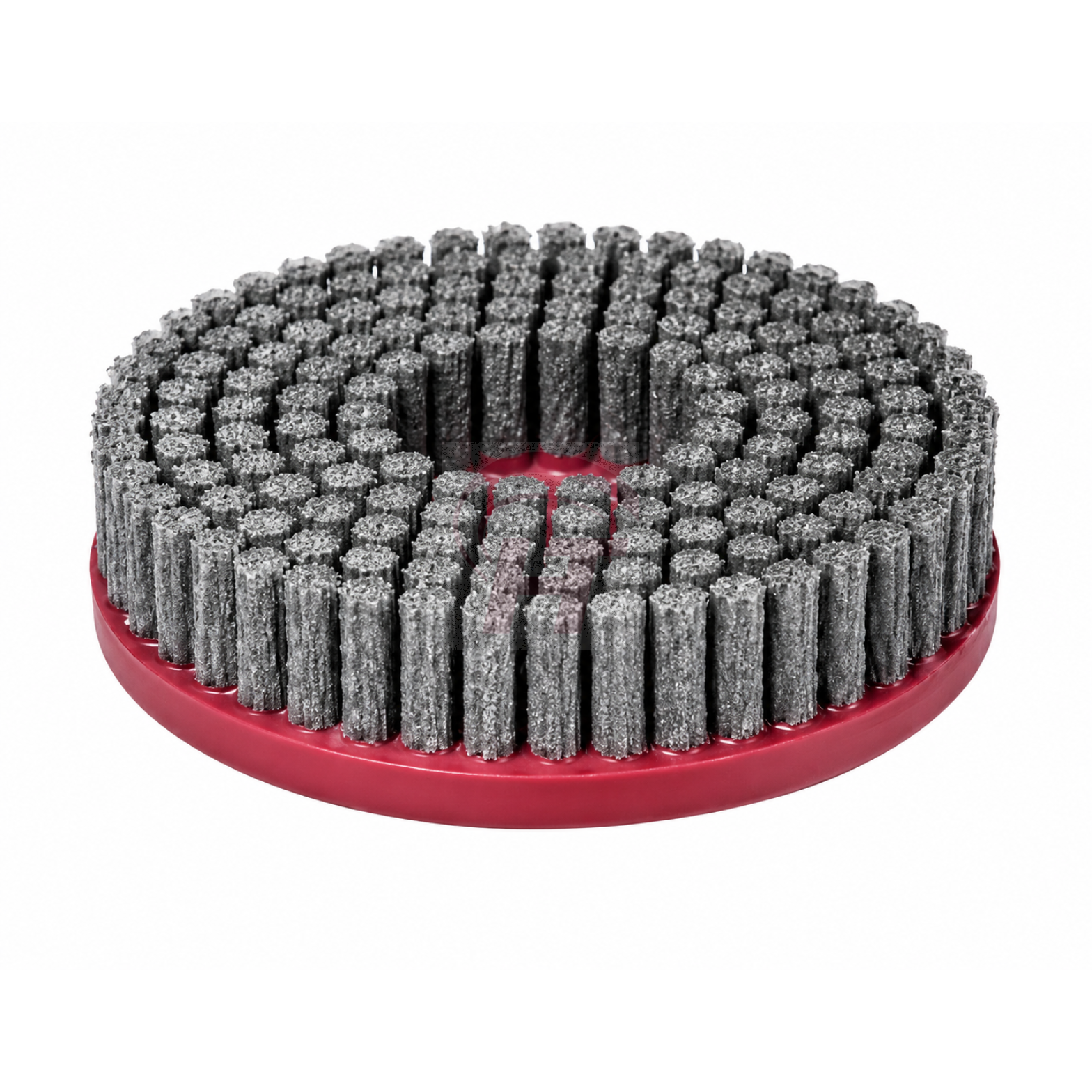

Disc Brush Type T10 Ø 125 mm

➔ PA abrasive filaments

➔ Grit S120x1.1

➔ Combination push-on arbor DIN6358

➔ Suitable for clamping adapter ZKA14981 or ZKA1389

➔ Total height 50 mm

➔ Total diameter 125 mm

➔ Trim length 25 mm

➔ Trim diameter 123 mm

➔ Trim diameter 148 mm

Weight: kg
€102.00
Excl. VAT, excl. Shipping Cost
Availability
3-4 Days *
Item No.
BTB6267

Cup Brush T10 – Precise Deburring and Surface Finishing

The Cup Brush T10 from Hilzinger-Thum was specifically developed for demanding deburring, edge rounding, and surface finishing processes. Thanks to its high-quality abrasive filaments, it enables uniform material processing while offering a long service life. It is excellently suited for working with steel, stainless steel, aluminum, and many other materials.

Thanks to its cup shape, the brush reaches even hard-to-access contours and edges, ensuring a consistent finishing result. The robust construction guarantees smooth operation and high process reliability – both in automated production systems and in manual applications.

Your Benefits

  • Uniform deburring and edge rounding
  • Long service life thanks to high-quality abrasive filaments
  • Consistent finishing result throughout the entire service life
  • Ideal for flat surfaces, contours, and profile geometries
  • Reduction of manual rework
  • Suitable for automated and manual applications
  • Made in Germany – quality from Hilzinger-Thum

Typical Areas of Application

  • Deburring stamped and laser-cut components
  • Edge rounding
  • Surface finishing
  • Oxide removal
  • Cleaning and matting
  • Weld seam preparation
  • Fine machining of metal components

Suitable Materials

  • Steel
  • Stainless steel
  • Aluminum
  • Brass
  • Copper
  • Cast iron
  • Plastics (material-dependent)

Speed

  • 1000 - 2000 rpm
